137931 - Dodge - P2B-E-204-HT
Regular price
$605.09 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

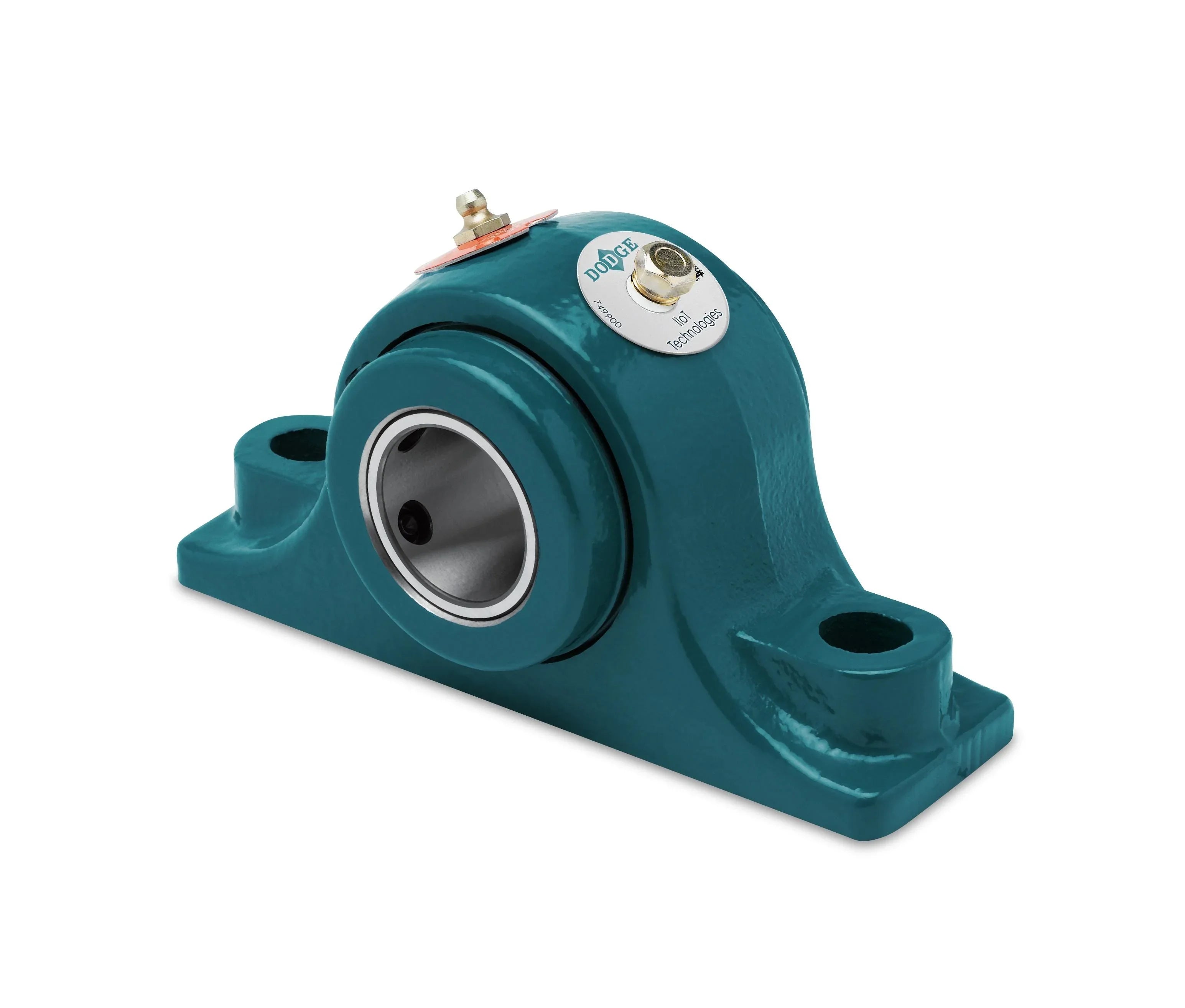

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-E-204-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 2.75 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 8.63 in |
| Bolt to Bolt (Min) | 8.38 in |
| Bore Length | 4 in |
| Dynamic Load Capacity | 10600 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2420 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.25 in |
| Static Load Capacity | 54000 lbf |
| Suitable for High Temperature | Yes |
| Take-Up Frame Size | CP-502,HD-200 |
