087164 - Dodge - P4B-C-408E TYPE C
Regular price
$13,470.54 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

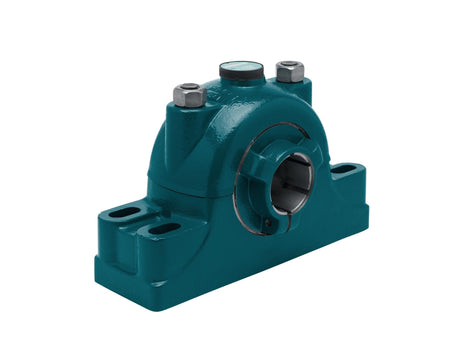

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
087164 - Dodge - P4B-C-408E TYPE C
P4B-C-408E
Technical Specifications
| Base to Center Height | 7.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 17.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.5000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 10.0000 |
| Bore Length (Unit) | INCH |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 4.5000 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-500 |
