080005 - Dodge - F4S-IP-315RE MOD
Regular price
$2,160.94 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

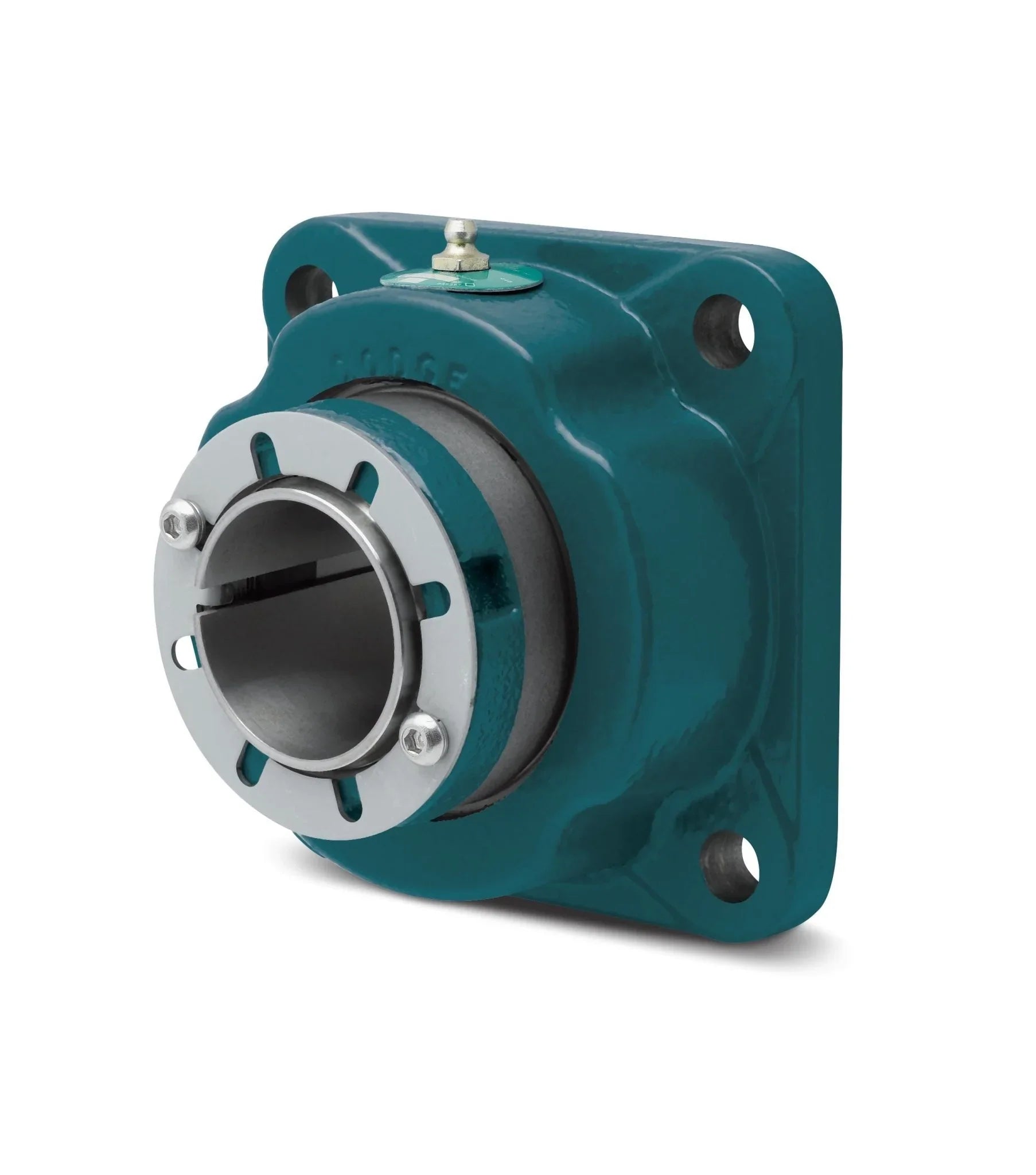

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
F4S-IP-315RE MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Type | Spherical Roller |
| Bolt Circle | 10.75 in |
| Bolt Diameter | 0.875 in |
| Bolt to Bolt (Max) | 7.61 in |
| Bolt to Bolt (Min) | 7.61 in |
| Bolt Width | 0 in |
| Bore Length | 4.7 in |
| Dynamic Load Capacity | 83000 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 180 mm |
| Lubrication | Grease |
| Maximum Speed | 2200 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.9375 in |
| Static Load Capacity | 104000 lbf |
