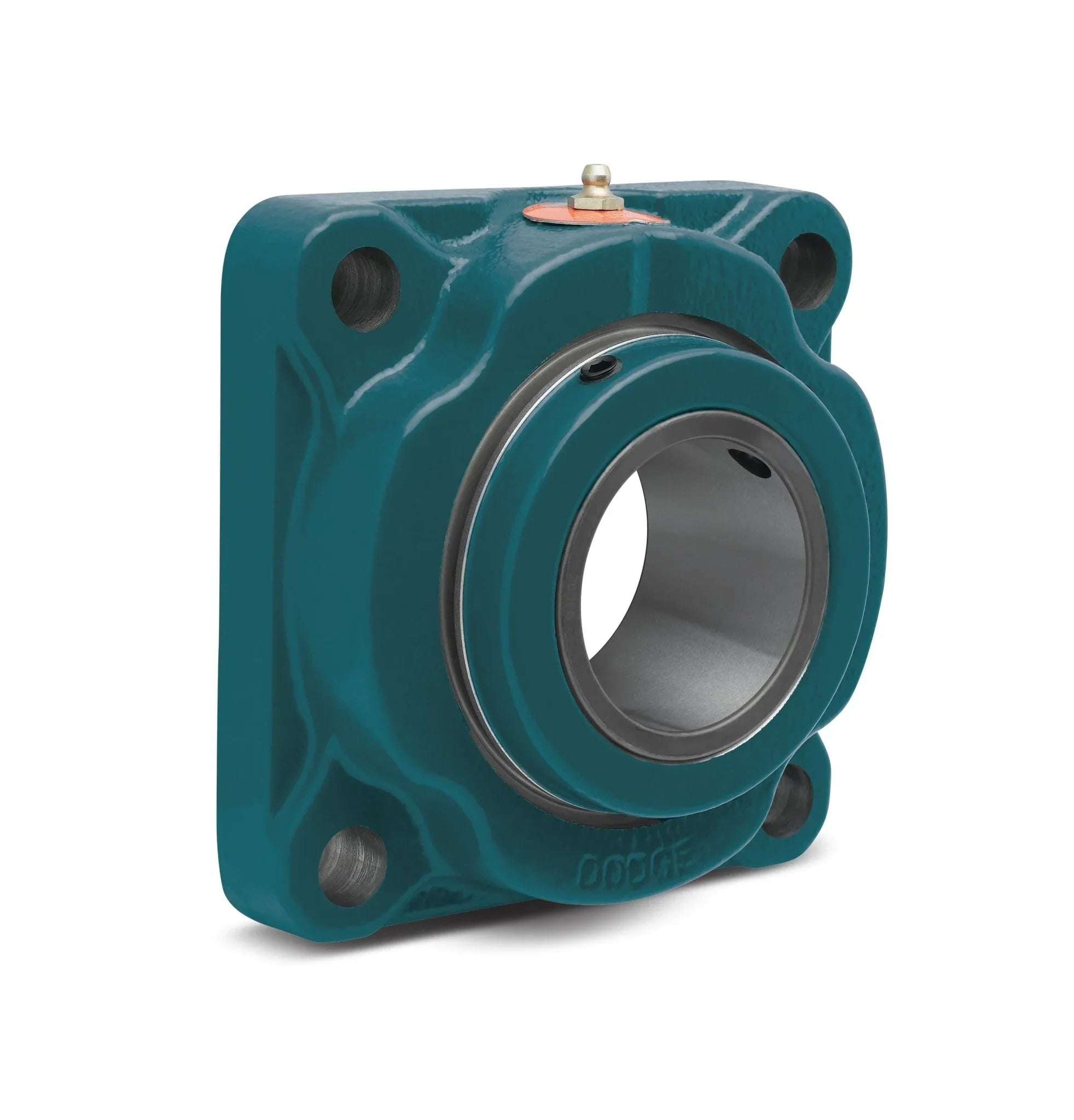

079639 - Dodge - F4B-UN2-207E-HT
Regular price
$1,279.68 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
F4B-UN2-207E-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 6.75 in |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 4.78 in |
| Bolt to Bolt (Min) | 4.78 in |
| Bolt Width | 0 in |
| Bore Length | 2.2 in |
| Dynamic Load Capacity | 39000 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Solid |
| Housing Material | Ductile Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 120 mm |
| Lubrication | Grease |
| Maximum Speed | 1900 RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.4375 in |
| Static Load Capacity | 47500 lbf |
| Suitable for High Temperature | Yes |
