079310 - Dodge - EF4B-IP-211L MOD
Regular price
$950.40 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

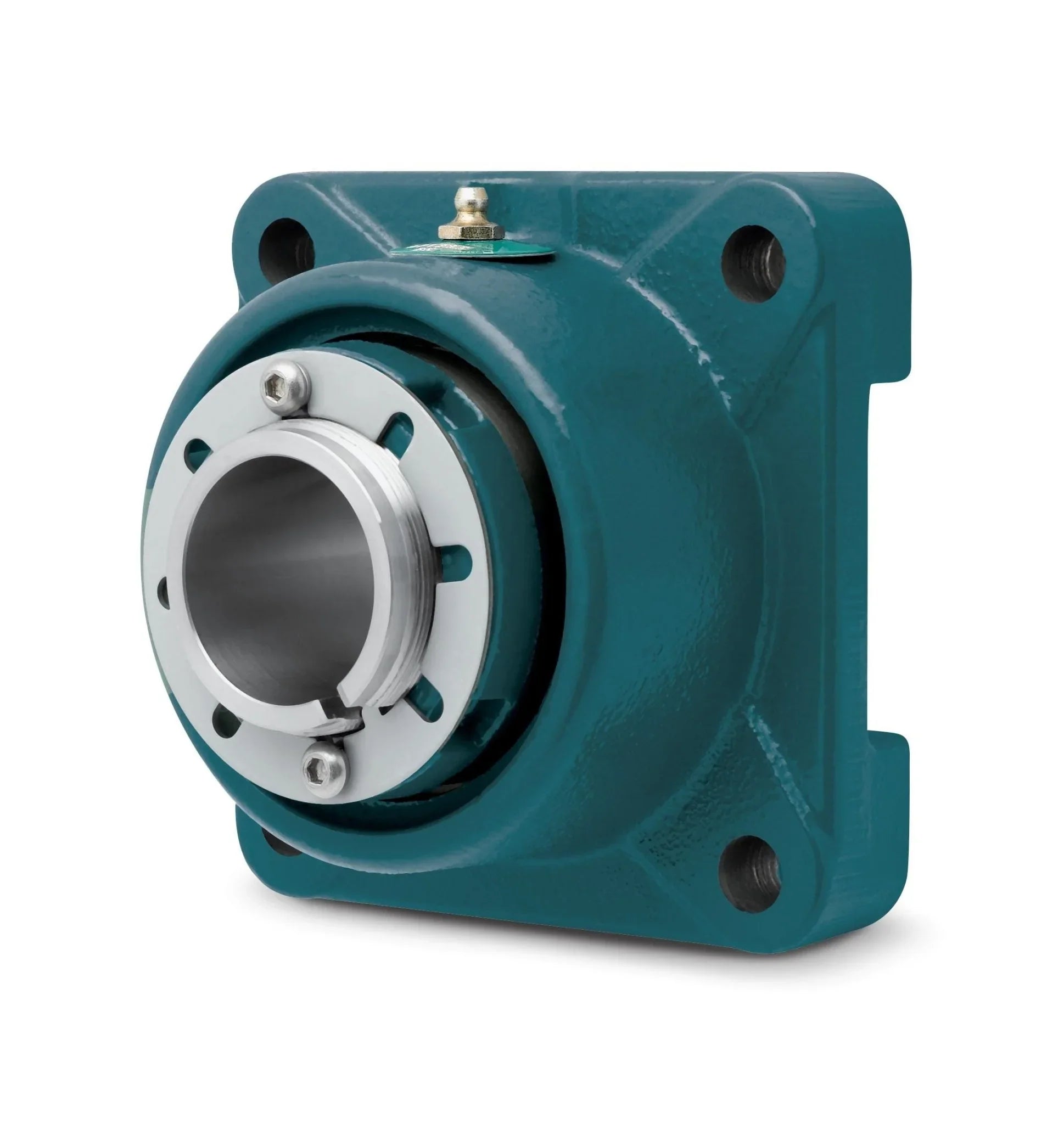

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
EF4B-IP-211L MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Type | Spherical Roller |
| Bolt Circle | 8.49 in |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 6 in |
| Bolt to Bolt (Min) | 6 in |
| Bolt Width | 0 in |
| Bore Length | 3.5 in |
| Dynamic Load Capacity | 41500 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Grease Name | Mobilith SHC 460 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 130 mm |
| Lubrication | Grease |
| Maximum Speed | 3400 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.6875 in |
| Static Load Capacity | 53000 lbf |
