078980 - Dodge - P4B522-ISAF-315RE MOD
Regular price
$2,061.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

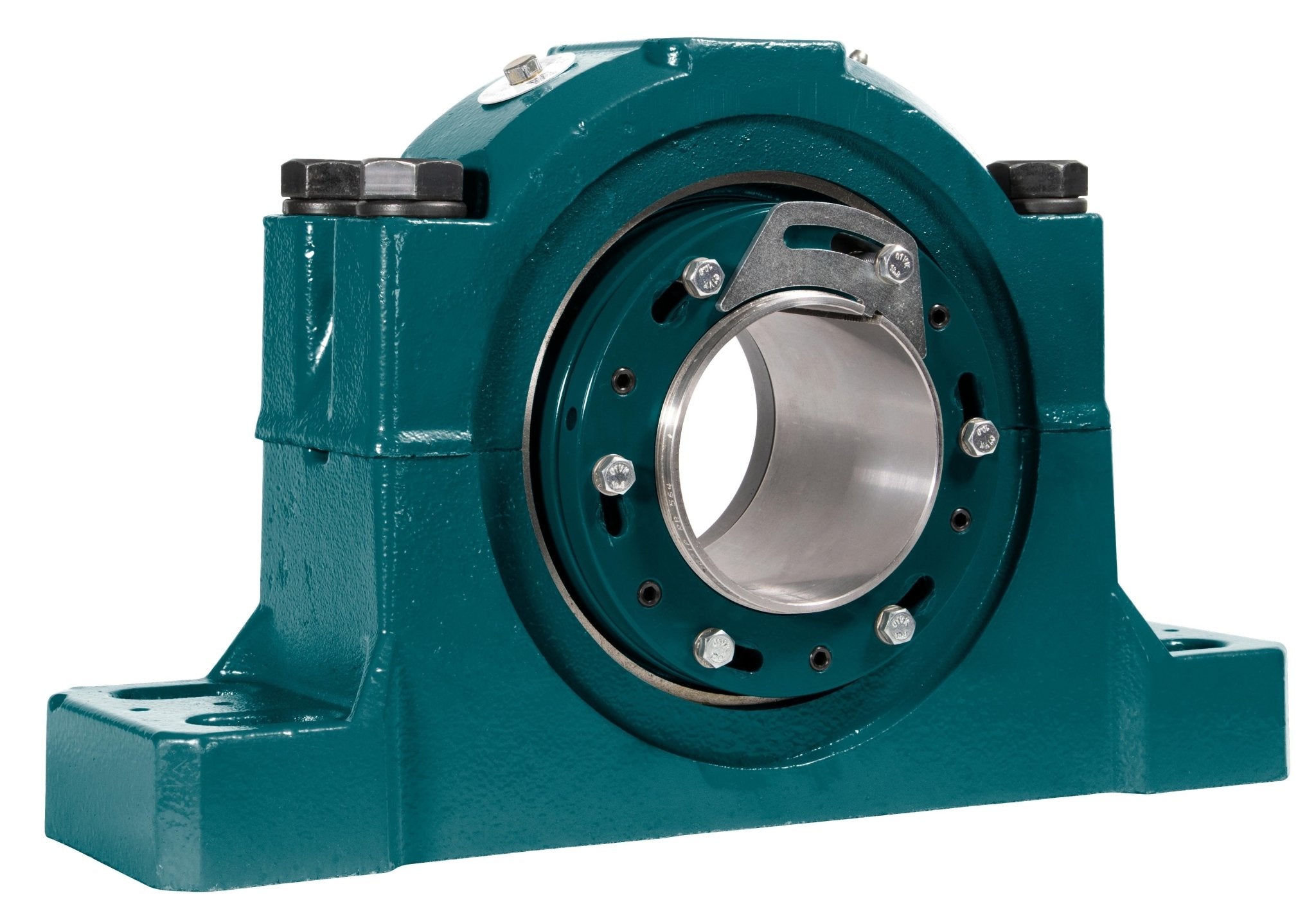

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B522-ISAF-315RE MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 4.94 in |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 14.5 in |
| Bolt to Bolt (Min) | 12.59 in |
| Bolt Width | 2.75 in |
| Bore Length | 4.7 in |
| Dynamic Load Capacity | 83000 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Grease Name | Aeroshell #7 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1530 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.9375 in |
| Static Load Capacity | 104000 lbf |
| Take-Up Frame Size | HD-400,TS-500 |
