078965 - Dodge - P4B532-TAF-150MRE
Regular price
$6,998.77 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

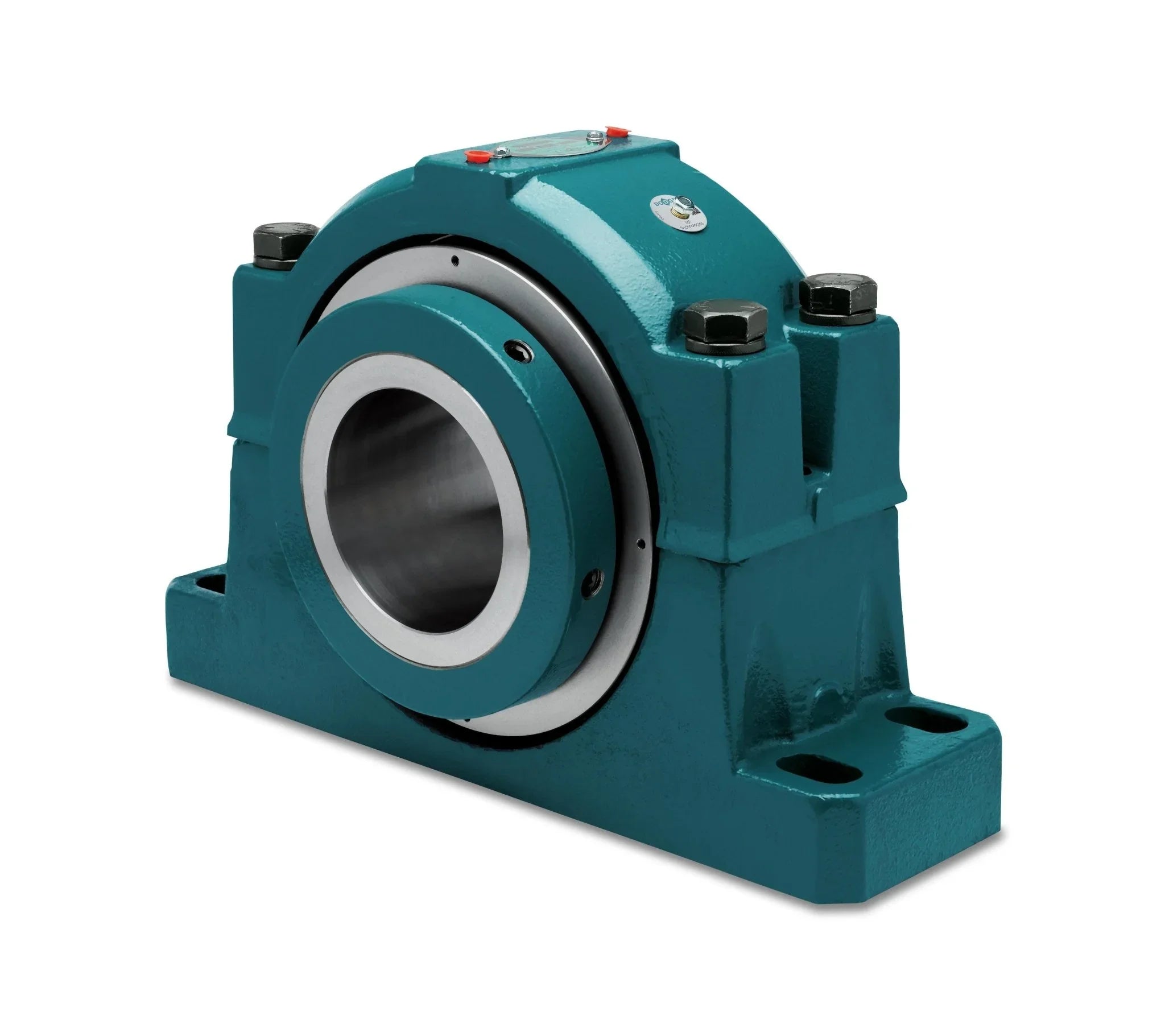

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B532-TAF-150MRE
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 169.926 mm |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 25.4 mm |
| Bolt to Bolt (Max) | 549.402 mm |
| Bolt to Bolt (Min) | 482.6 mm |
| Bolt Width | 107.95 mm |
| Bore Length | 228.6 mm |
| Dynamic Load Capacity | 181043 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 915 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 150 mm |
| Static Load Capacity | 1574670 N |
