078944 - Dodge - P2B510-TAF-040MR
Regular price
$483.77 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

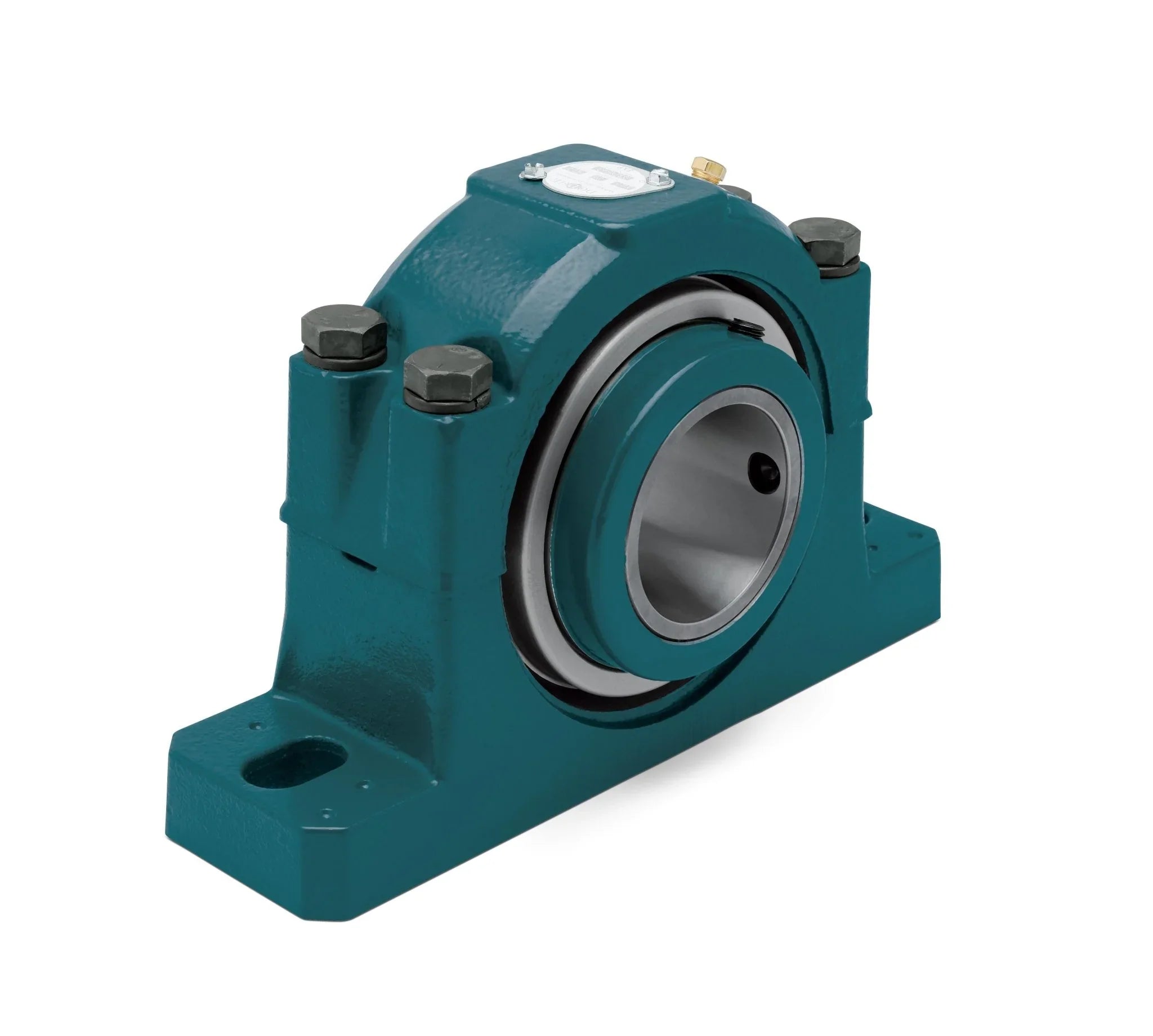

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B510-TAF-040MR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 63.5 mm |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 12.7 mm |
| Bolt to Bolt (Max) | 177.8 mm |
| Bolt to Bolt (Min) | 165.1 mm |
| Bore Length | 85.852 mm |
| Dynamic Load Capacity | 31449 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 95.25 mm |
| Lubrication | Grease |
| Maximum Speed | 3320 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 40 mm |
| Static Load Capacity | 146791 N |
