078937 - Dodge - P4B-IP-408R MOD
Regular price
$2,902.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

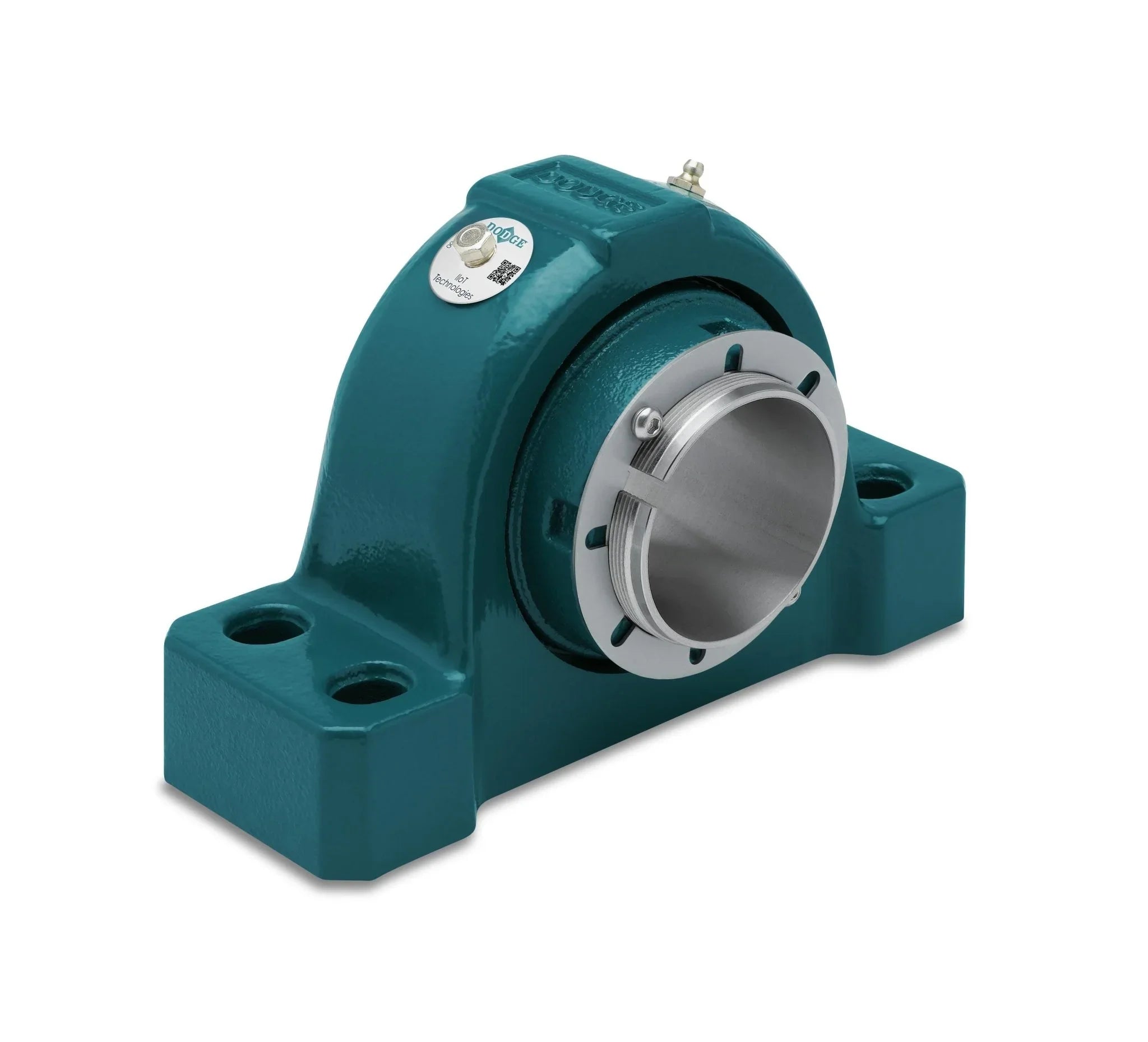

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-IP-408R MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 4.75 in |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 14 in |
| Bolt to Bolt (Min) | 13 in |
| Bolt Width | 2.5 in |
| Bore Length | 5.23 in |
| Dynamic Load Capacity | 104000 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Grease Name | Mobilith SHC 460 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1325 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 4.5 in |
| Static Load Capacity | 132000 lbf |
| Take-Up Frame Size | HD-350 |
