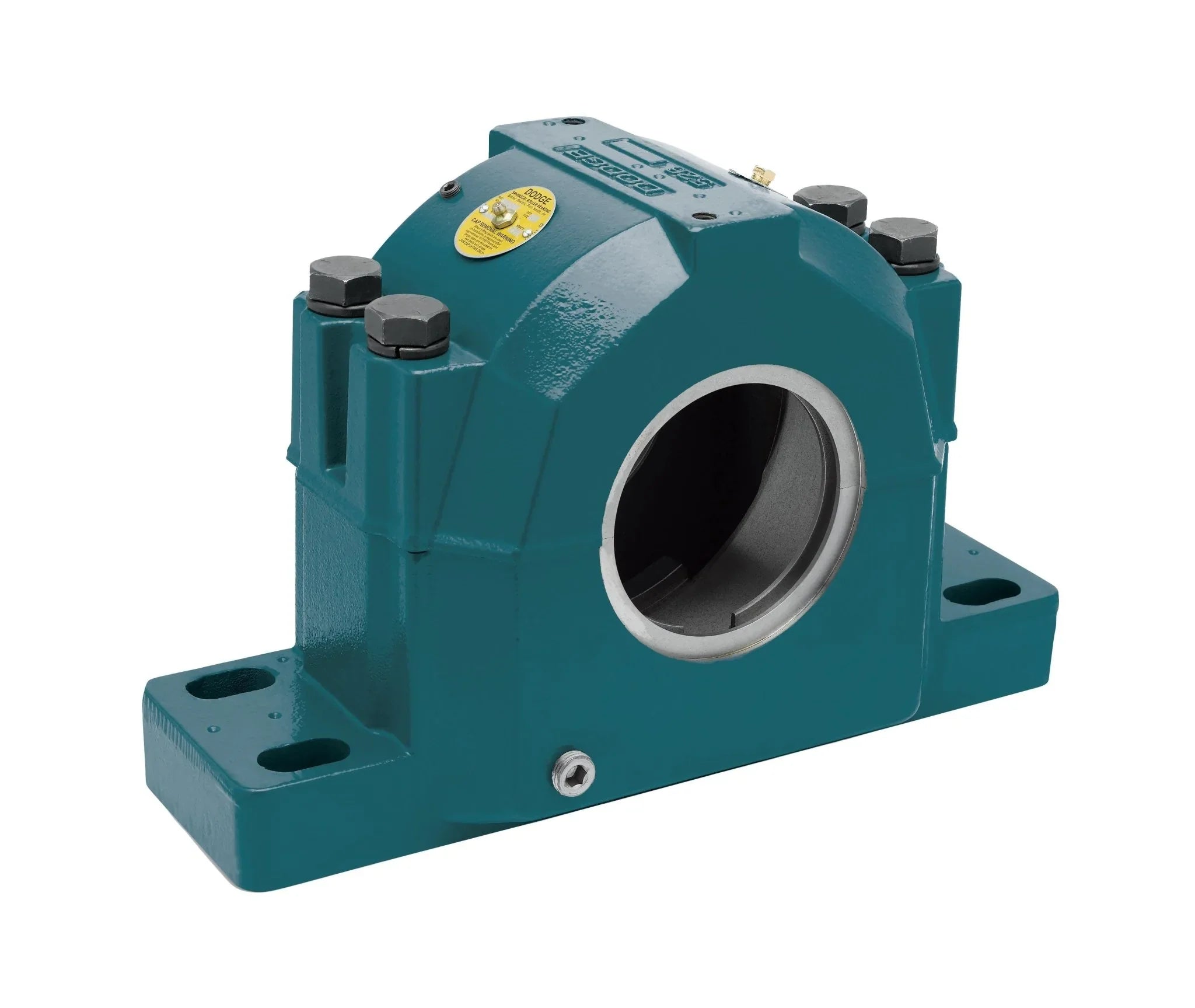

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
078409 - Dodge - P4B518-USAF-080MLERAH
P4B518-USAF-080MLERAH
Technical Specifications
| Base to Center Height | 4.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Housing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.1300 |
| Bolt Width (Unit) | INCH |
| Bore Length | 5.7000 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 78000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 80.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 85000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
