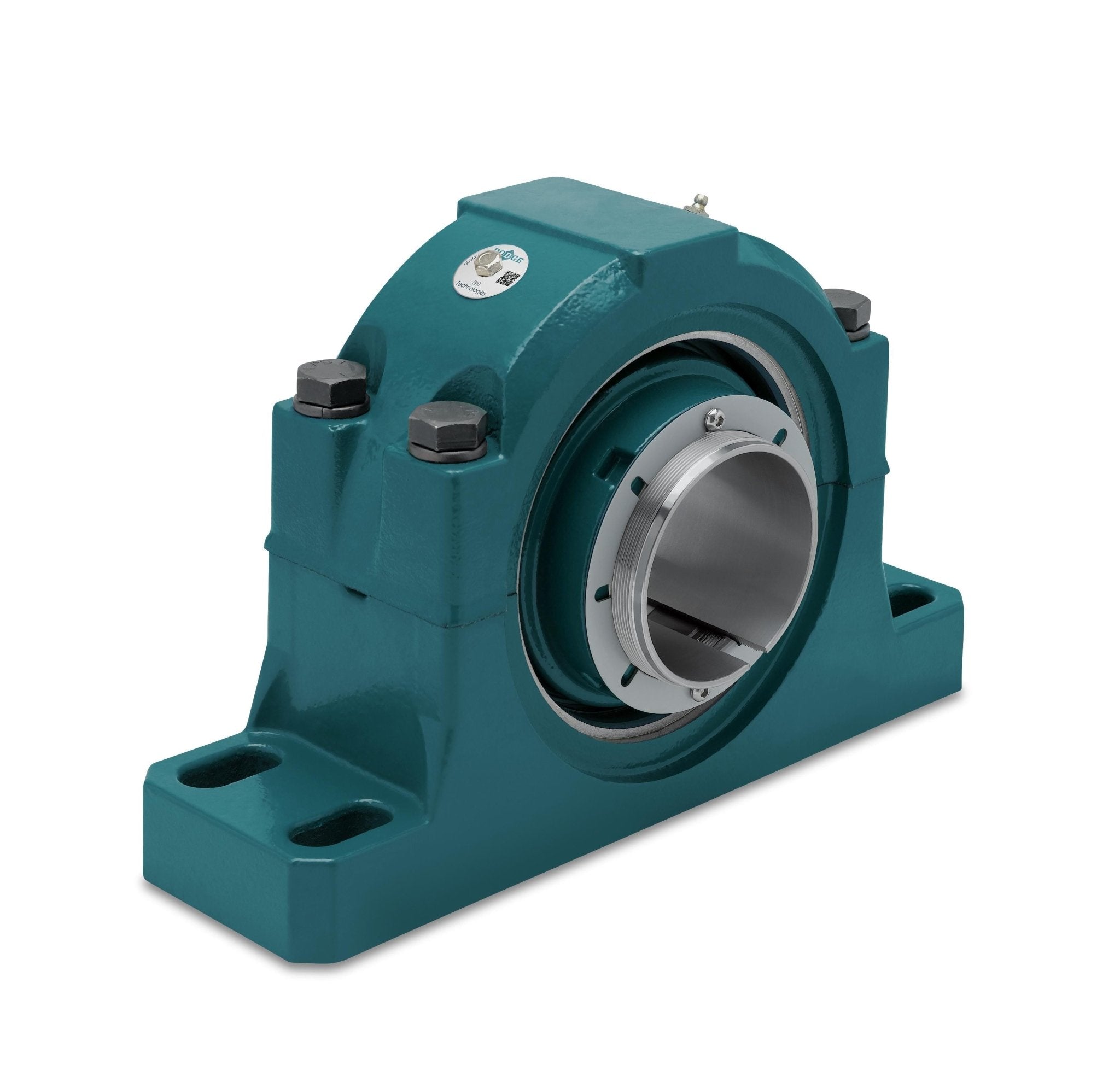

078156 - Dodge - P4B520-ISAF-307RE-DRY
Regular price
$1,482.36 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B520-ISAF-307RE-DRY
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 4.5 in |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 13.13 in |
| Bolt to Bolt (Min) | 11.63 in |
| Bolt Width | 2.38 in |
| Bore Length | 4.17 in |
| Dynamic Load Capacity | 65500 lbf |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Maximum Speed | 1825 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.4375 in |
| Static Load Capacity | 81500 lbf |
| Take-Up Frame Size | HD-350,TS-500 |
