077886 - Dodge - P2B-DI-045MRE
Regular price
$938.08 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

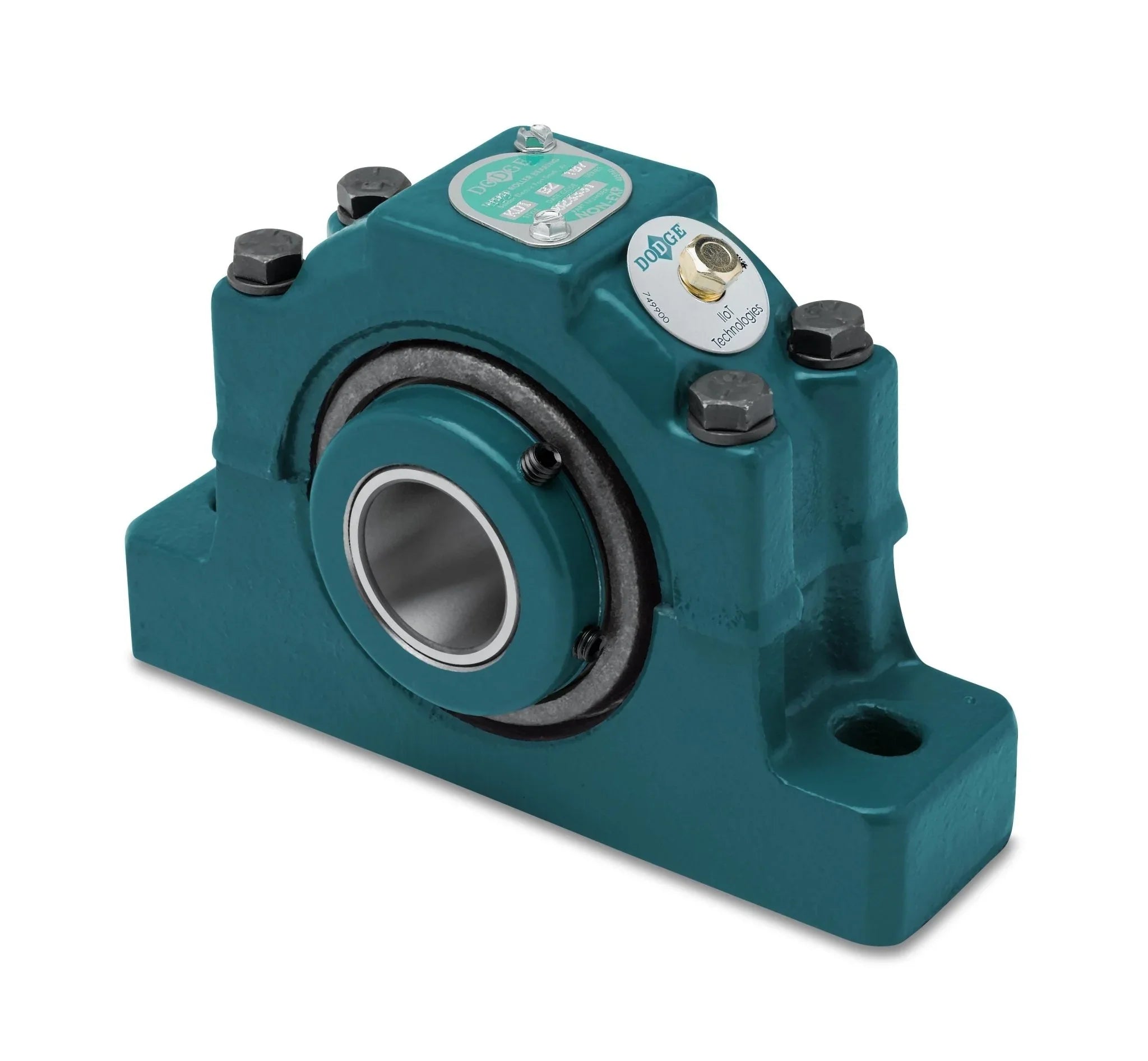

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-DI-045MRE
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 73.152 mm |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 15.875 mm |
| Bolt to Bolt (Max) | 214.376 mm |
| Bolt to Bolt (Min) | 187.452 mm |
| Bore Length | 88.9 mm |
| Dynamic Load Capacity | 41368 lbf |
| Expansion Capability | Expansion (Float) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3050 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 45 mm |
| Static Load Capacity | 191273 lbf |
| Take-Up Frame Size | CP-400,HD-200 |
