076835 - Dodge - P2B-SXRH-60M-E
Regular price
$555.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

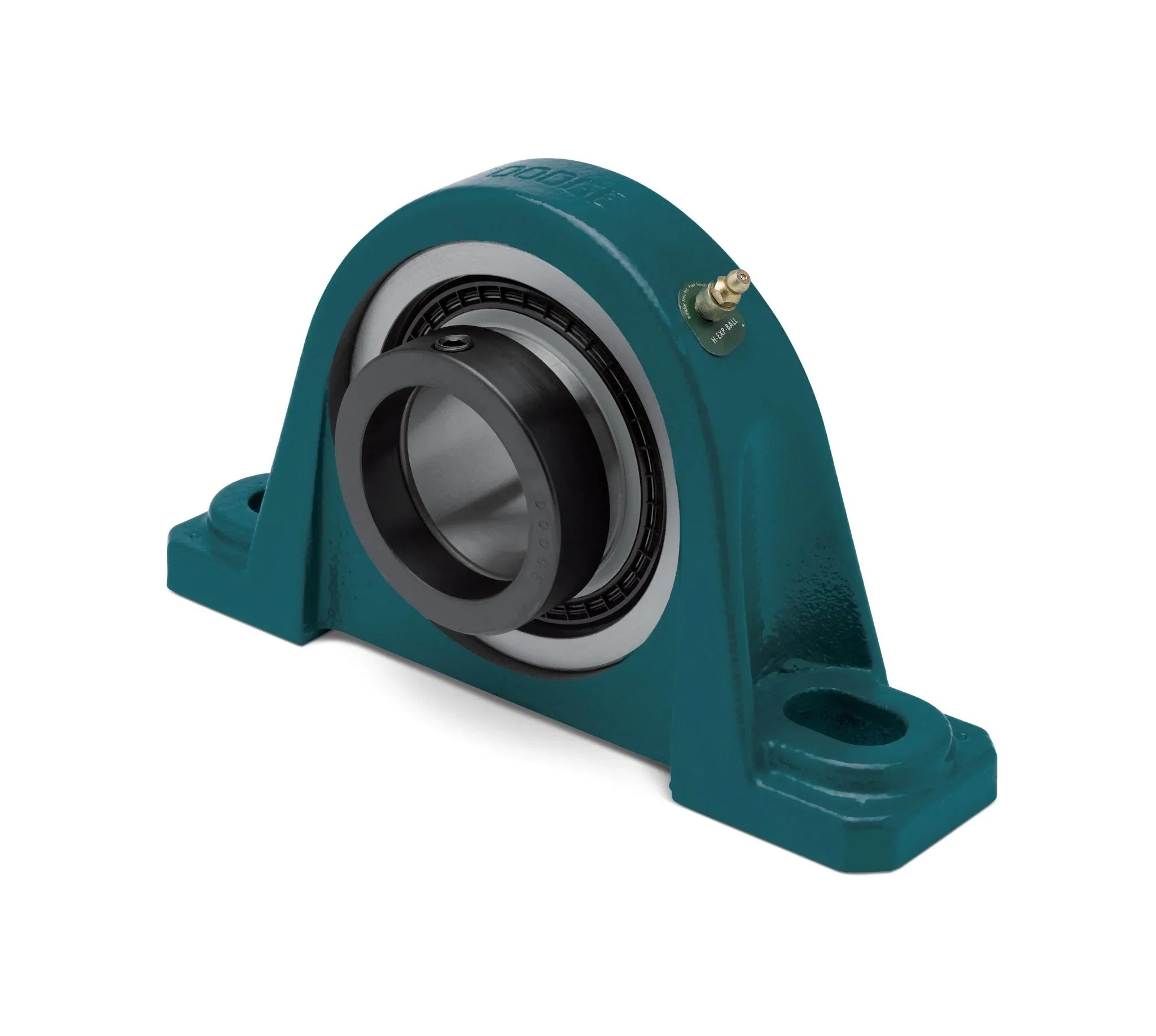

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-SXRH-60M-E
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 212 Series |
| Base to Center Height | 76.2 mm |
| Bearing Type | Ball |
| Bolt Diameter | 19.05 mm |
| Bolt to Bolt (Max) | 215.9 mm |
| Bolt to Bolt (Min) | 190.5 mm |
| Bore Length | 69.596 mm |
| Dynamic Load Capacity | 52449 N |
| Expansion Capability | Expansion (Float) |
| Greasable | Yes |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 60 mm |
| Standoff Housing | No |
| Static Load Capacity | 36031 N |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
