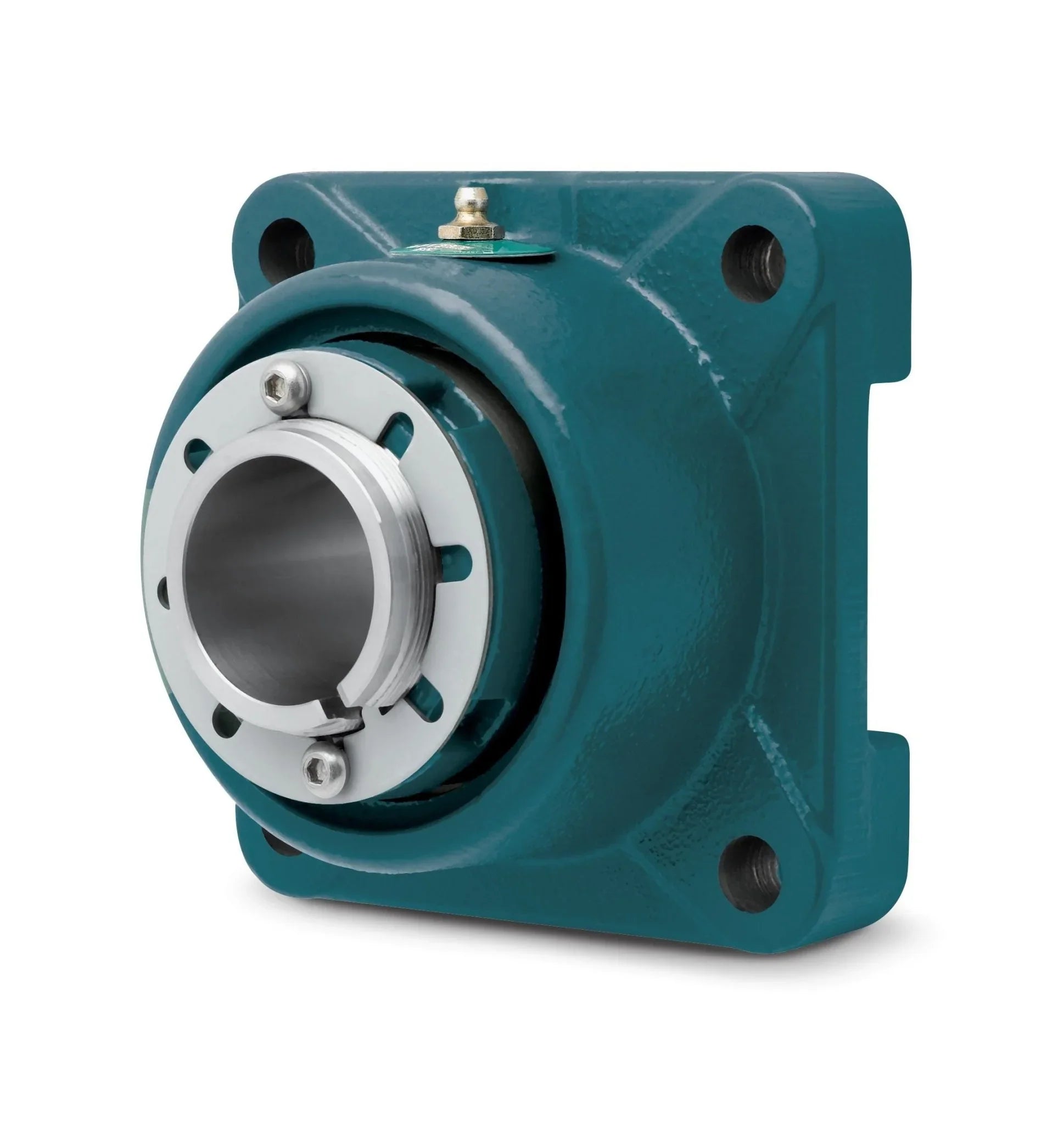

076702 - Dodge - EF4B-IP-050MR
Regular price
$434.28 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
EF4B-IP-050MR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 157.226 mm |
| Bolt Diameter | 12.7 mm |
| Bolt to Bolt (Max) | 111.252 mm |
| Bolt to Bolt (Min) | 111.252 mm |
| Bolt Width | 0 mm |
| Bore Length | 72.644 mm |
| Dynamic Load Capacity | 97861 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 90 mm |
| Lubrication | Grease |
| Maximum Speed | 3520 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 50 mm |
| Static Load Capacity | 106757 N |
