076644 - Dodge - EP2B-IP-075MRE
Regular price
$807.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

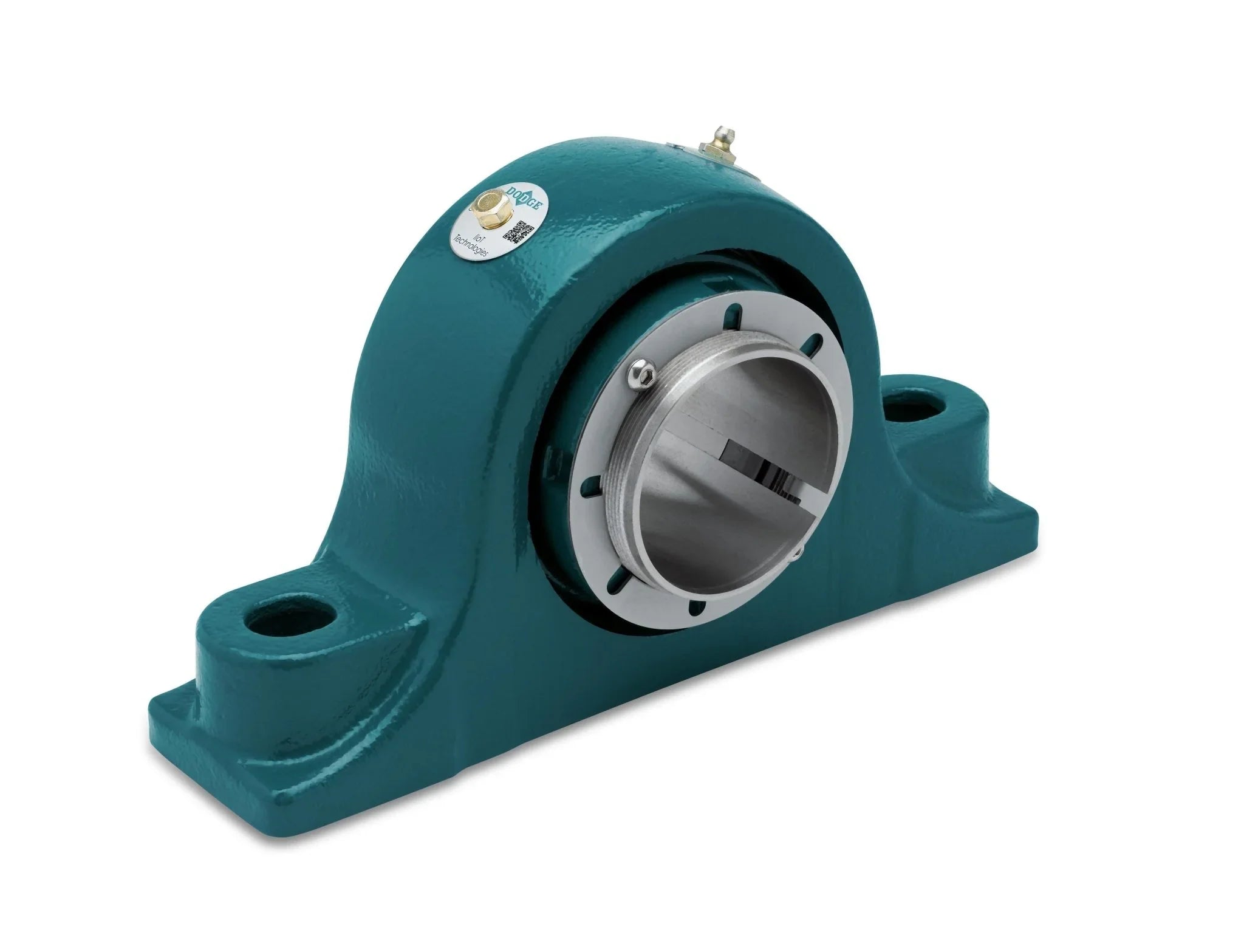

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
EP2B-IP-075MRE
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 82.55 mm |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 19.05 mm |
| Bolt to Bolt (Max) | 211.1502 mm |
| Bolt to Bolt (Min) | 201.6252 mm |
| Bore Length | 88.9 mm |
| Dynamic Load Capacity | 184601 N |
| Expansion Capability | Expansion (Float) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2250 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 75 mm |
| Static Load Capacity | 235756 N |
| Take-Up Frame Size | HD-250,TS-400 |
