075262 - Dodge - P2B-SCMAH-65M
Regular price
$363.58 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

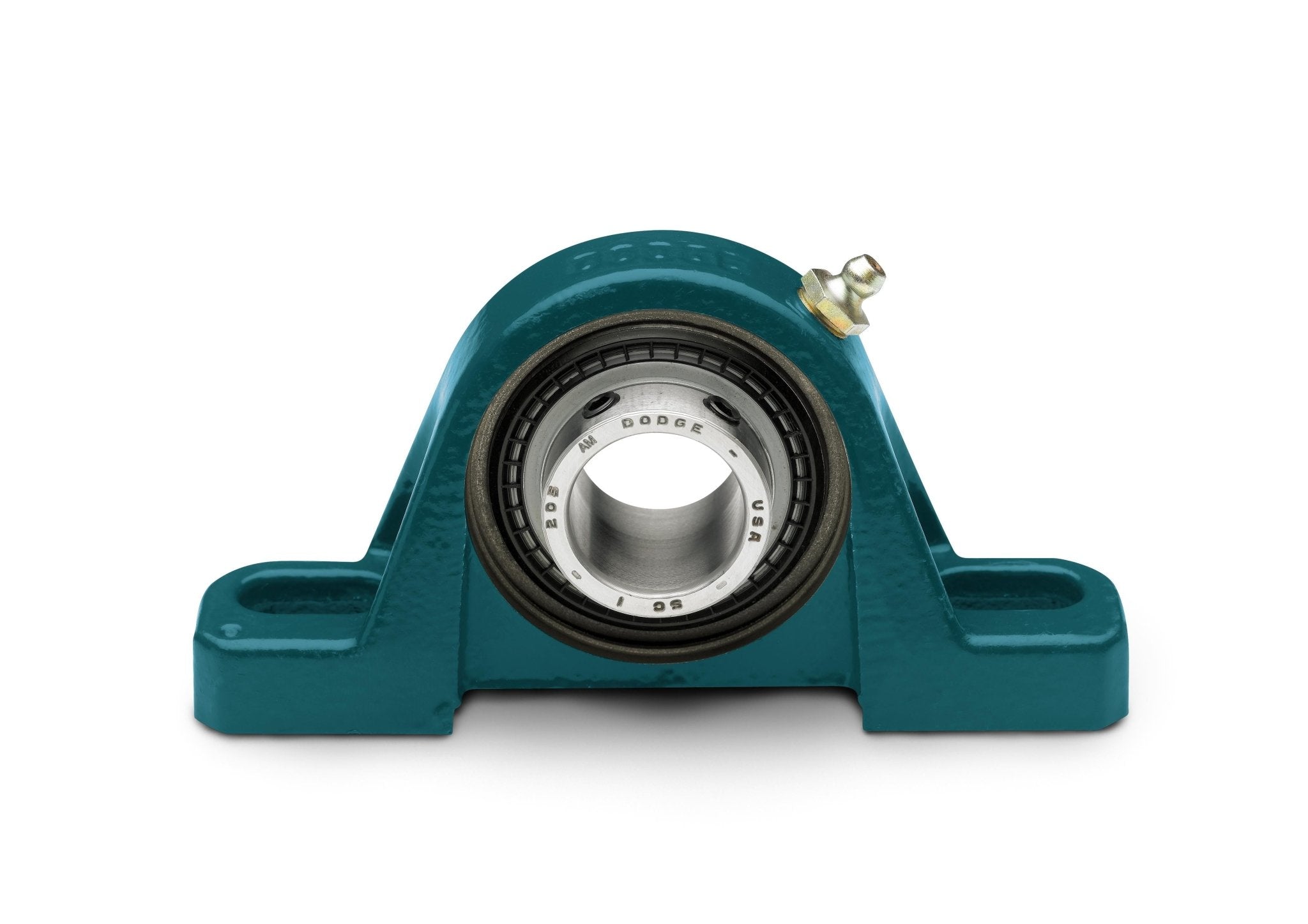

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
075262 - Dodge - P2B-SCMAH-65M
P2B-SCMAH-65M
Technical Specifications
| Ball Bearing Series | 214 Series |
| Base to Center Height | 3.0000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.9700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/pillow_blocks/p2b_scmah_hm_asmtab.prj&varset={SERIES=214},{SS=65},{PN=075262},{DESCRIPTION=P2B-SCMAH-65M},{WEIGHT=6.7},{A=64.5},{B=273.1},{C=68.3},{DMIN=190.5},{DMAX=215.9},{F=M18},{G=33.5},{H=23.9},{J=154.7},{L=84.1},{M=76.2},{R=26.9},{S=37.6},{U=124.0},{V=247.9},{W=23.9},{X=3.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 13995 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 65.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 9838 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-45,TS-300 |
