073066 - Dodge - P2B-SCM-70M-HT
Regular price
$849.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

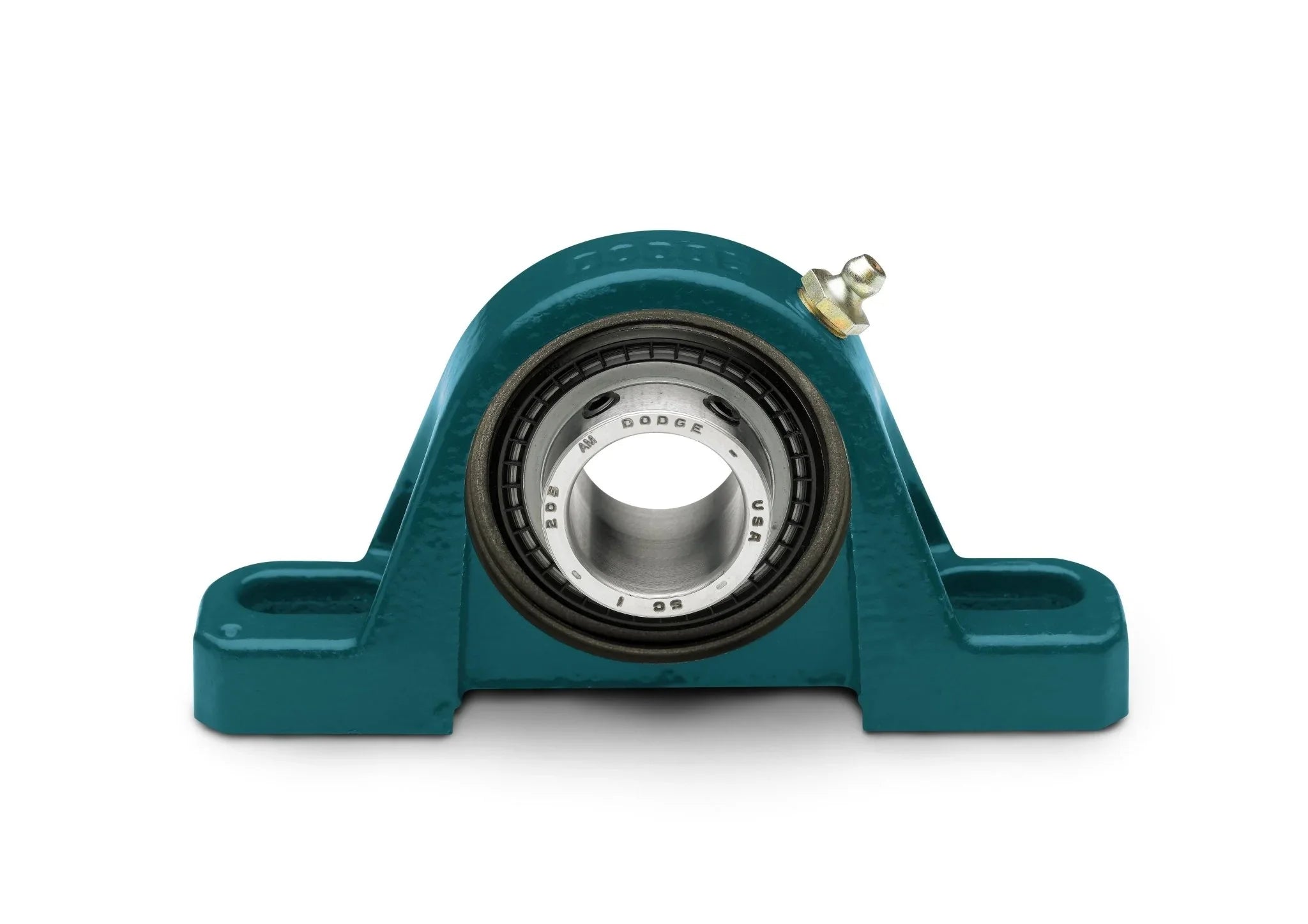

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-SCM-70M-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 215 Series |
| Base to Center Height | 88.9 mm |
| Bearing Type | Ball |
| Dynamic Load Capacity | 66154 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Krytox GPL 206 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Maximum Speed | 1750 RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 70 mm |
| Static Load Capacity | 49411 N |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
