068577 - Dodge - F4B-E-408-HT
Regular price
$3,636.86 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

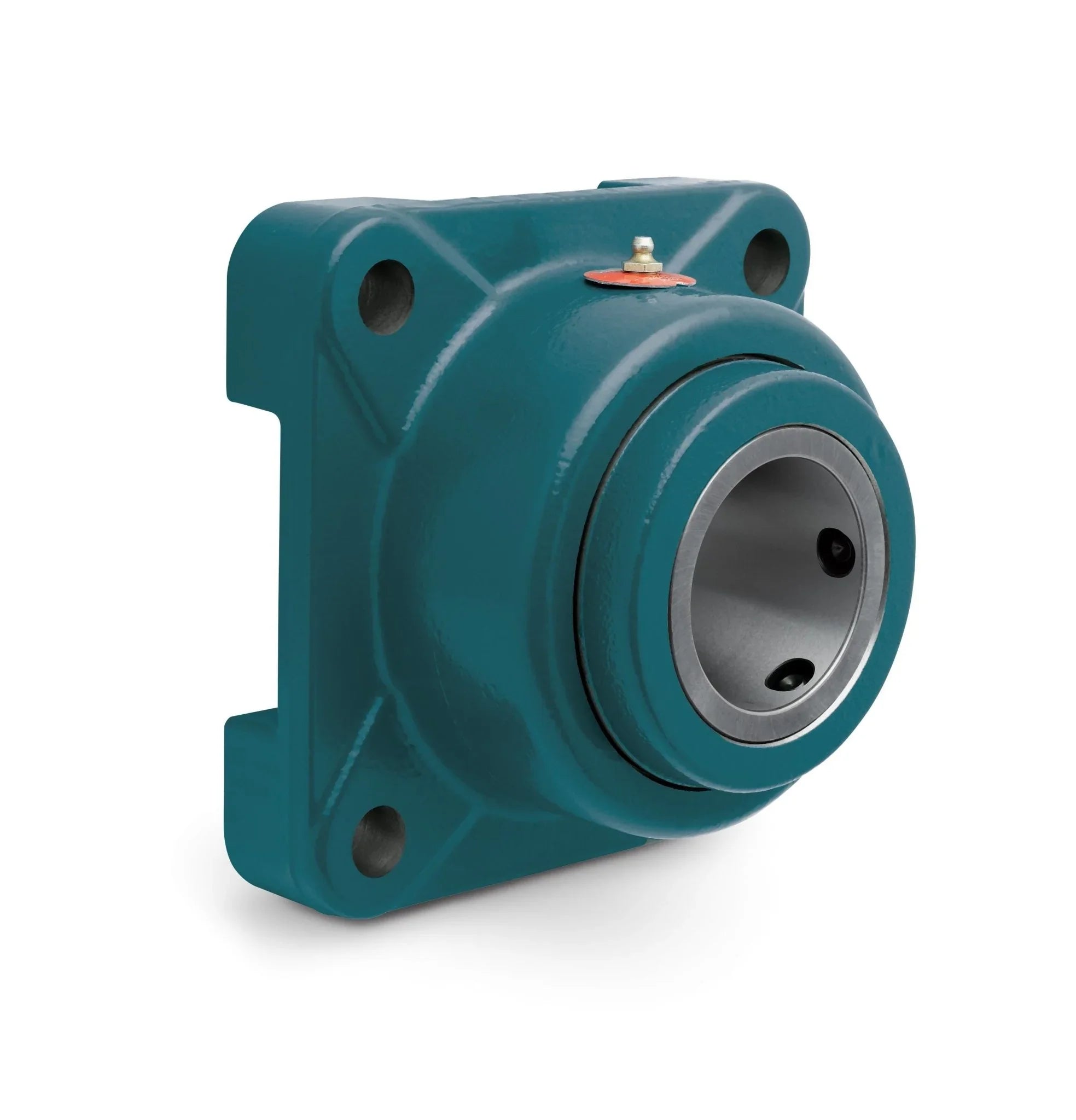

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
068577 - Dodge - F4B-E-408-HT
F4B-E-408-HT
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 12.3700 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.7470 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.7470 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.7500 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 30000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1360 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 188400 |
| Static Load Capacity (Unit) | POUND_FORCE |
