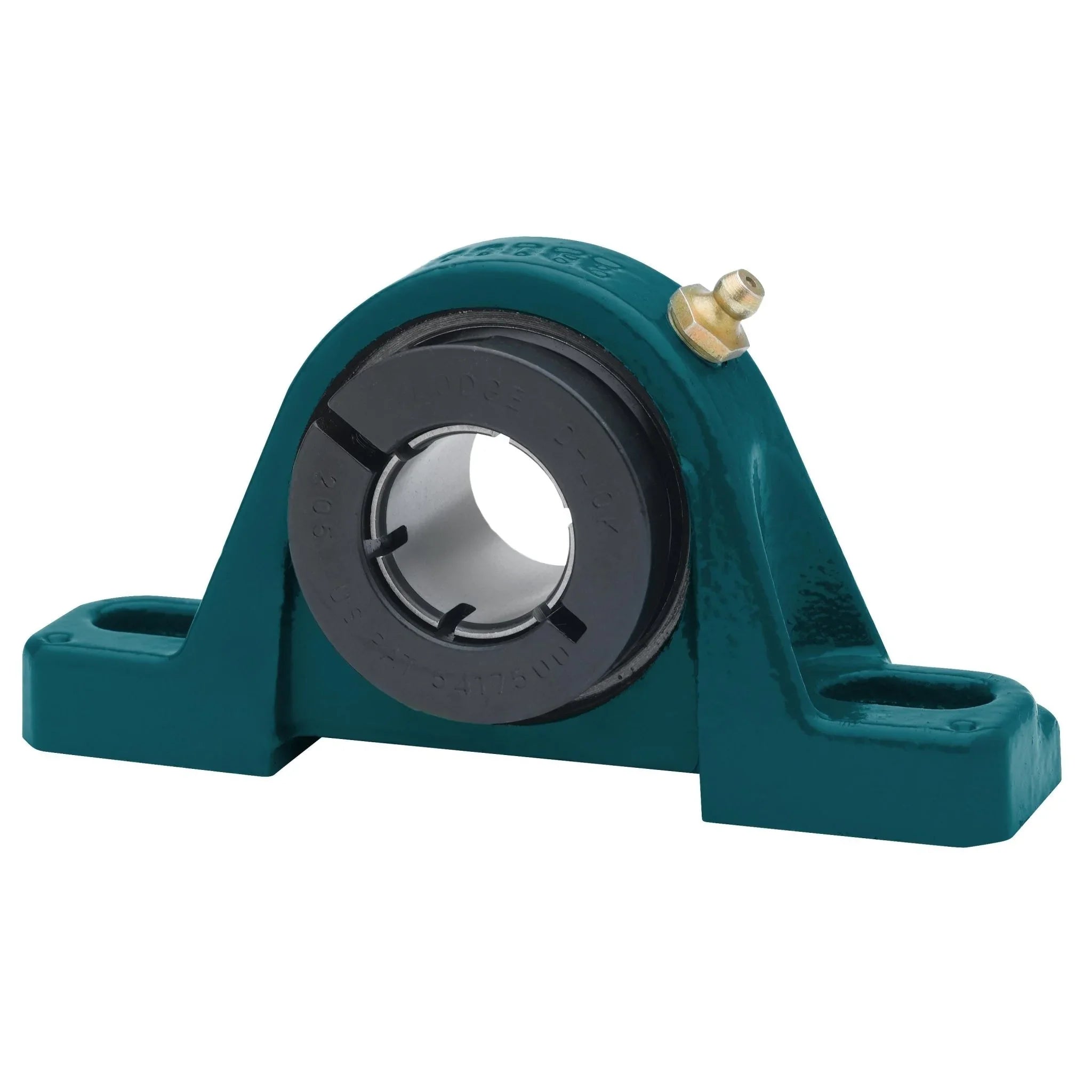

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
068537 - Dodge - P2B-DLAH-45M
P2B-DLAH-45M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/clamp_collar_d_lock/metric/p2b_dlah_hm_asmtab.prj&varset={SERIES=209},{SS=45},{PN=068537},{DESCRIPTION=P2B-DLAH-45M},{WEIGHT=3.1},{A=51.1},{B=189.0},{C=50.8},{DMIN=139.7},{DMAX=157.2},{F=M12},{G=22.9},{H=19.1},{J=108.7},{L=75.9},{M=54.1},{R=19.1},{S=32.0},{U=85.9},{V=171.7},{W=17.5},{X=3.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 45.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
