067868 - Dodge - F4B-SL-40M
Regular price
$63.79 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

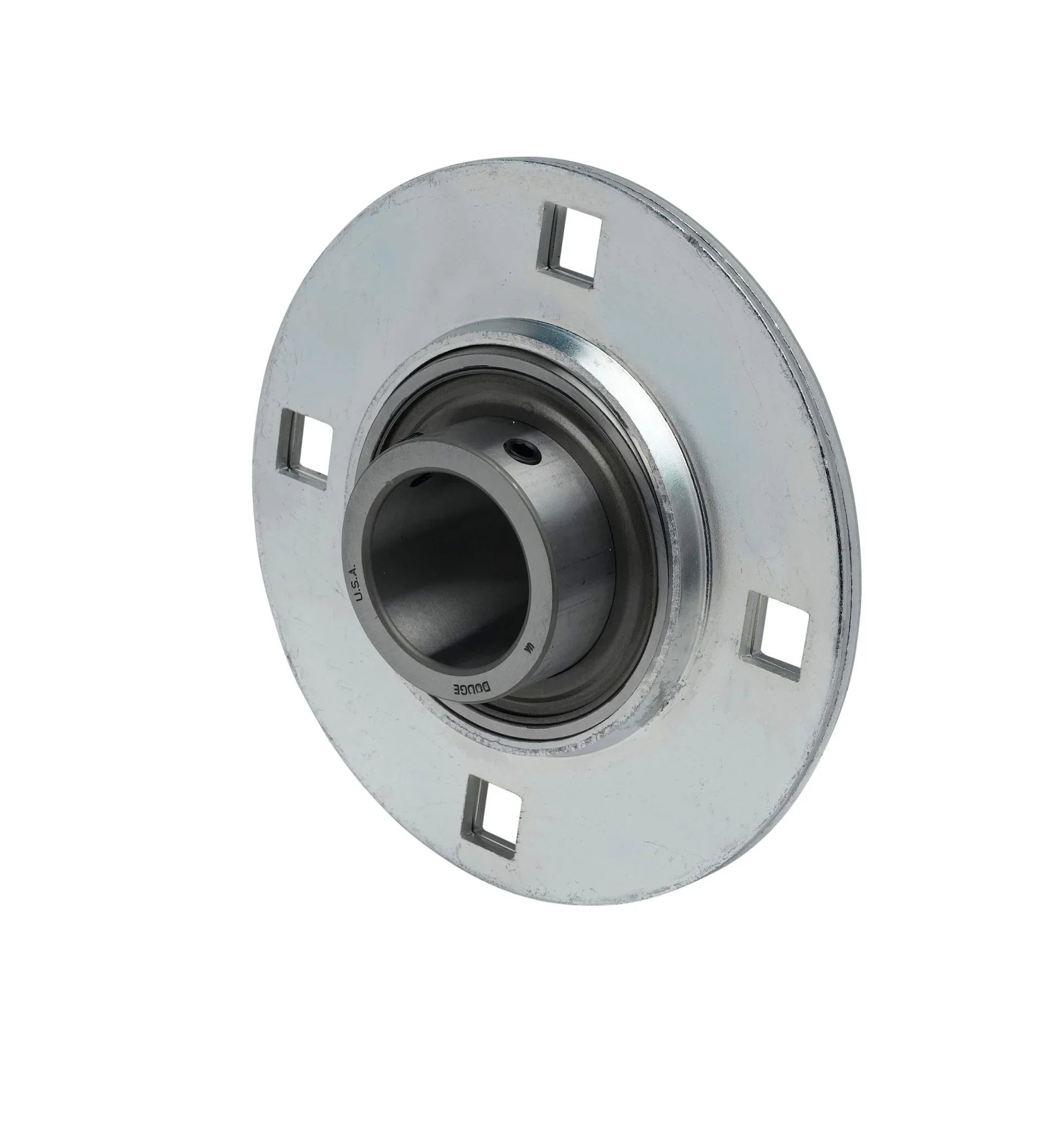

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
067868 - Dodge - F4B-SL-40M
F4B-SL-40M
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/light_duty/f4b_sl_hm_asmtab.prj&varset={SERIES=208},{SS=40},{PN=067868},{DESCRIPTION=F4B-SL-40M},{WEIGHT=1.15},{A=49.3},{B=147.6},{D=119.1},{E=10.4},{G=13.5},{J=90.4},{L=52.1},{R=19.1},{S=30.2},{T=3.3}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Stamped Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
