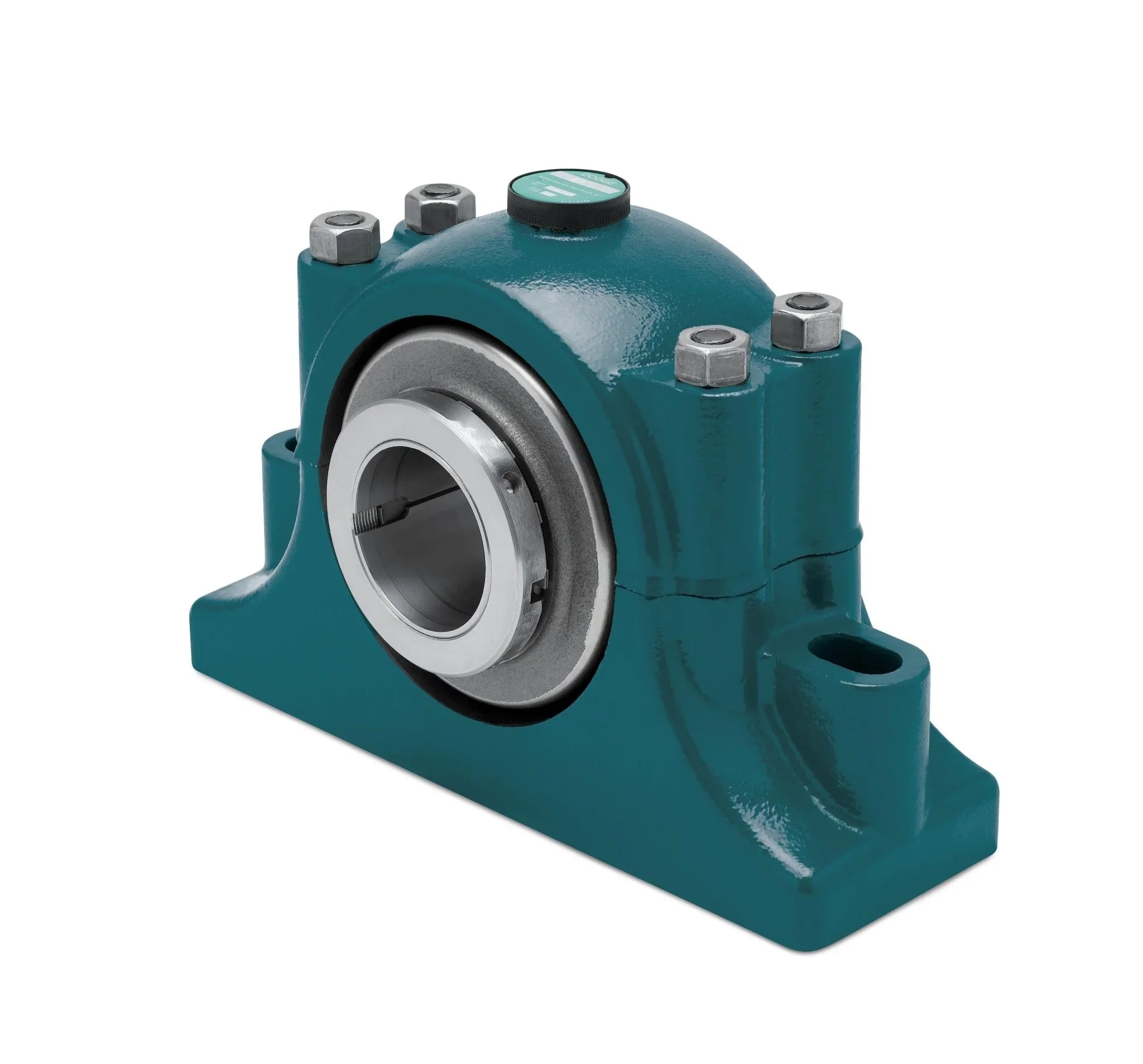

066227 - Dodge - P2B-SD-213 SPECIAL DUTY
Regular price
$4,609.37 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-SD-213
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 4.75 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.75 in |
| Bolt to Bolt (Max) | 12.5 in |
| Bolt to Bolt (Min) | 11 in |
| Bore Length | 5.75 in |
| Dynamic Load Capacity | 21331 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 2.8125 in |
| Static Load Capacity | 129000 lbf |
| Take-Up Frame Size | HD-300 |
