065773 - Dodge - CP4B532-USAF-507LER
Regular price
$4,818.25 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

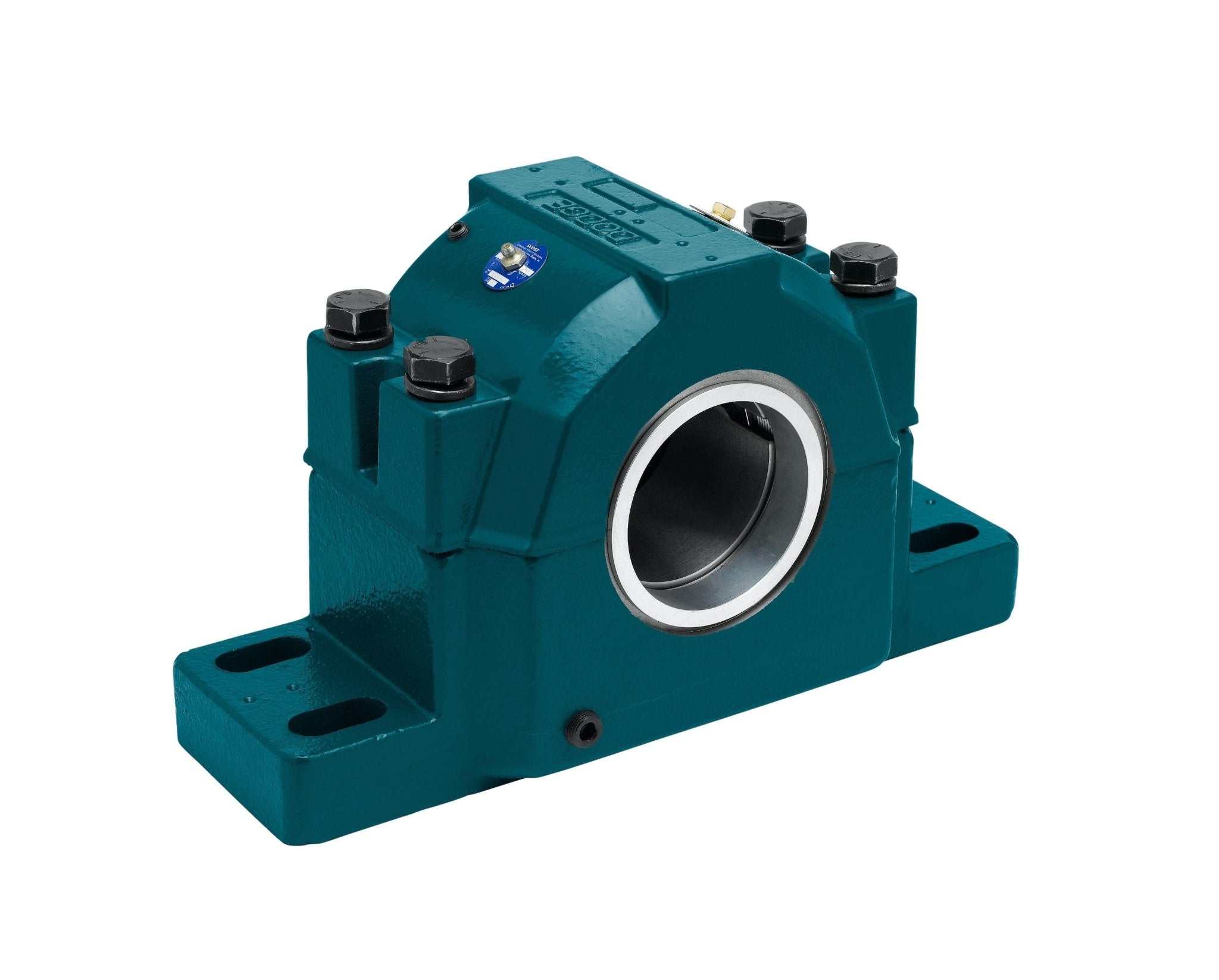

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
065773 - Dodge - CP4B532-USAF-507LER
CP4B532-USAF-507LER
Technical Specifications
| Base to Center Height | 6.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 19.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 17.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 9.2000 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 260000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Cast Closed Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 5.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 315000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
