060769 - Dodge - P2B-DI-203-HT MOD
Regular price
$1,212.29 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

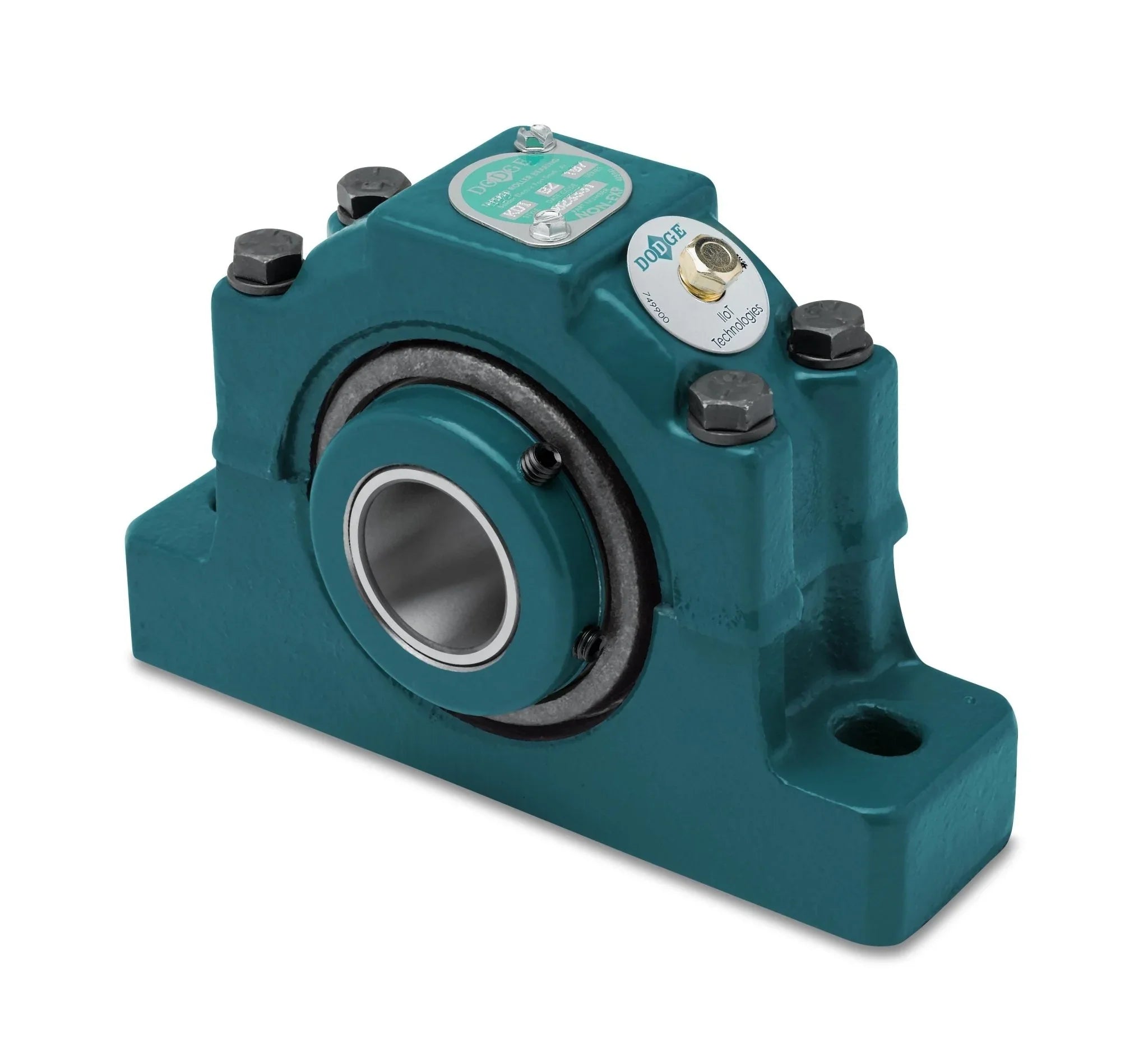

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2B-DI-203-HT MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 3 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 9.25 in |
| Bolt to Bolt (Min) | 8.06 in |
| Bore Length | 3.75 in |
| Dynamic Load Capacity | 9850 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2730 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.1875 in |
| Static Load Capacity | 48200 lbf |
| Suitable for High Temperature | Yes |
| Take-Up Frame Size | HD-200,TS-300 |
