060718 - Dodge - P4B-DI-211E MOD
Regular price
$1,670.18 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

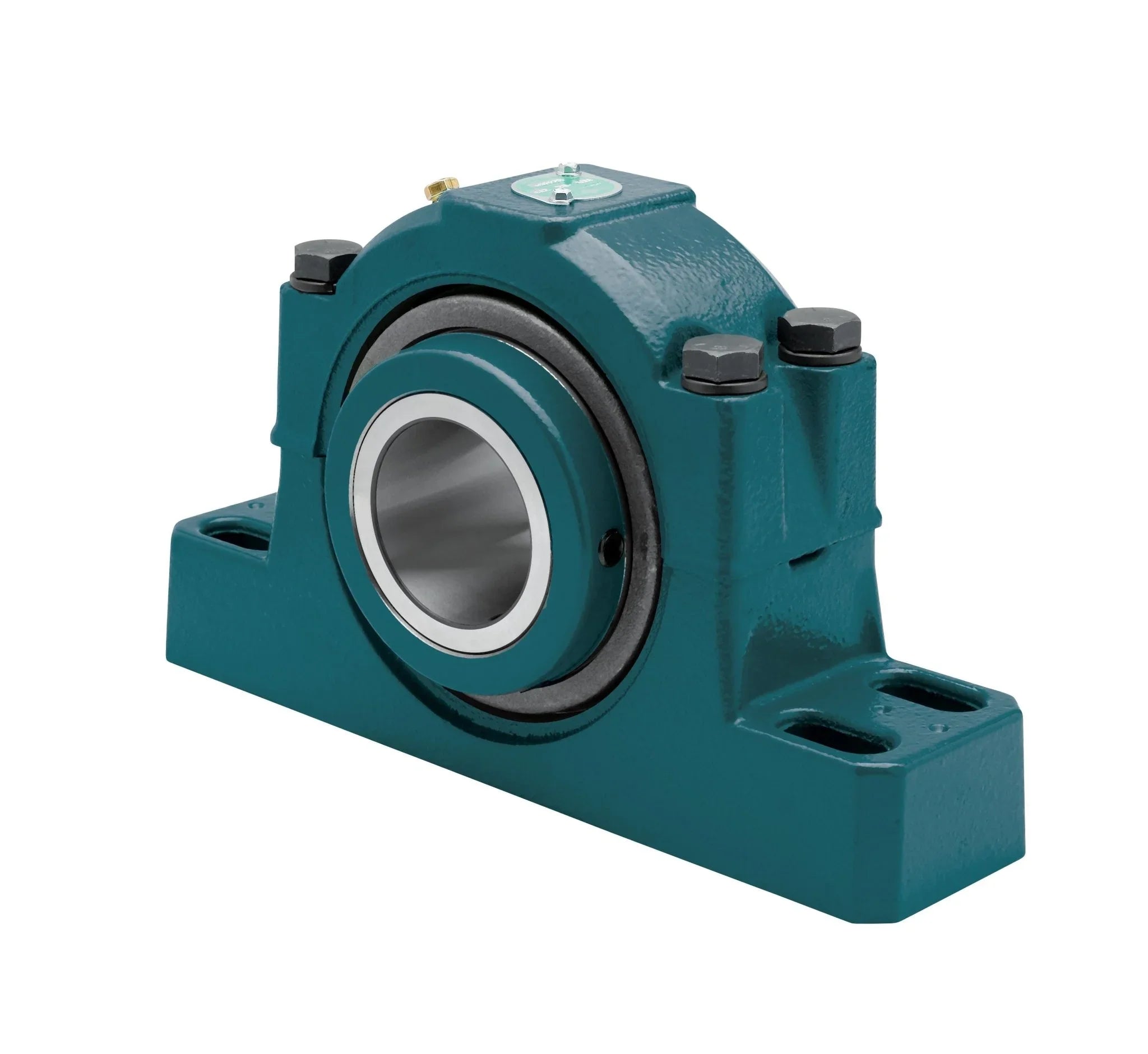

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-DI-211E MOD
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 3.75 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 11.5 in |
| Bolt to Bolt (Min) | 9.88 in |
| Bolt Width | 1.88 in |
| Bore Length | 4.5 in |
| Dynamic Load Capacity | 11120 lbf |
| Expansion Capability | Expansion (Float) |
| Greasable | Yes |
| Grease Name | Mobilux EP2 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.6875 in |
| Static Load Capacity | 61200 lbf |
| Take-Up Frame Size | HD-300 |
