058705 - Dodge - WSTU-SCM-200-NL
Regular price
$245.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

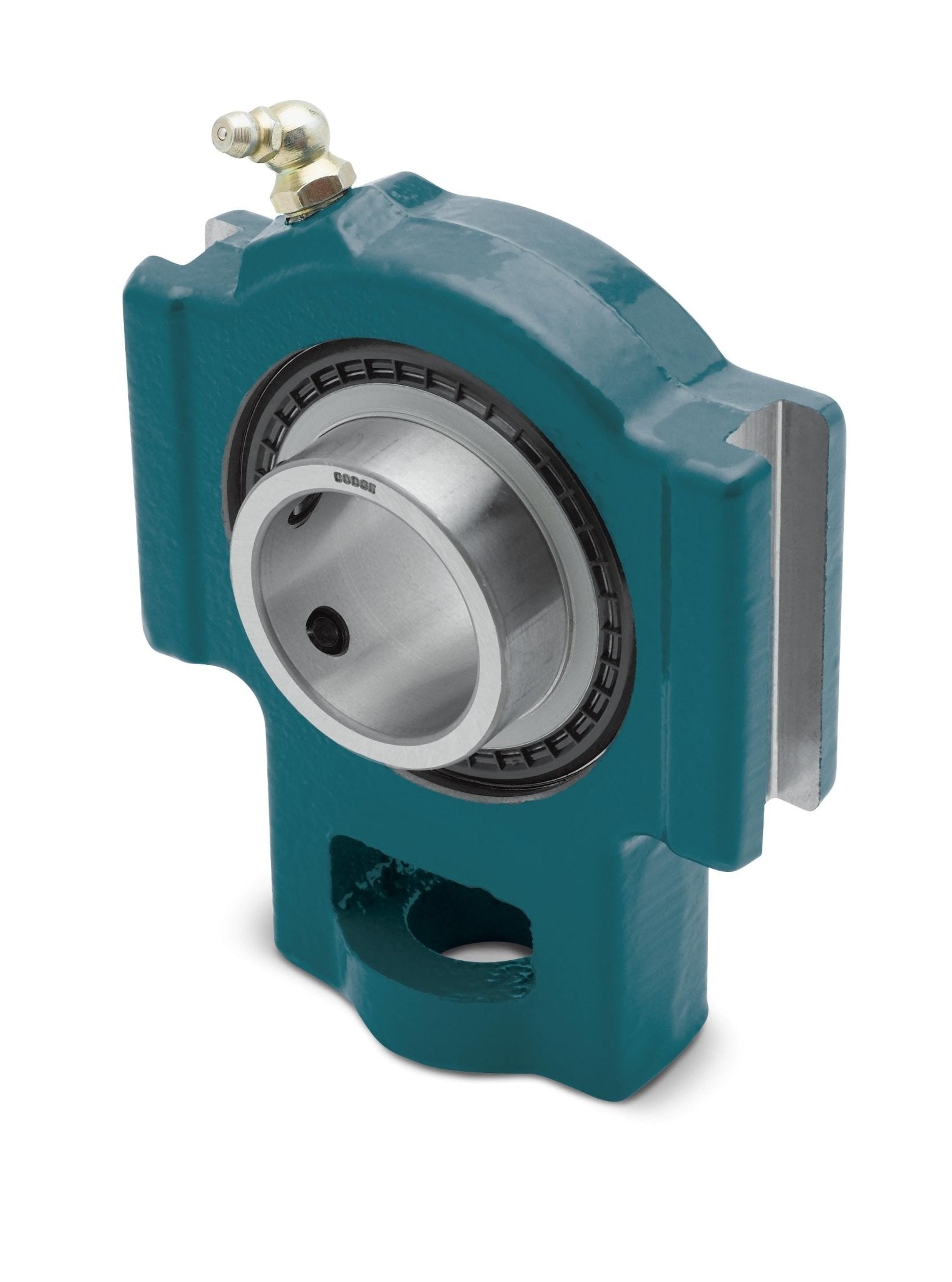

058705 - Dodge - WSTU-SCM-200-NL
WSTU-SCM-200-NL
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bore Length | 2.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/take_up/wstu_scm_hi_asmtab.prj&varset={SERIES=211},{SS=2},{PN=058705},{DESCRIPTION=WSTU-SCM-200-NL},{W=10.2},{FS=WS502},{LF=NO-LUBE},{A=2.22},{B=6.69},{C=1.063},{D=3.75},{E=4.19},{F=1-1/4},{G=0.75},{H=1.00},{J=4.00},{K=2.50},{L=2.71},{M=5.110 / 5.140},{N=5.88},{R=0.87},{S=1.35},{T=2.50}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-502 |
