057469 - Dodge - P4B-DI-600E-HT
Regular price
$11,751.58 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

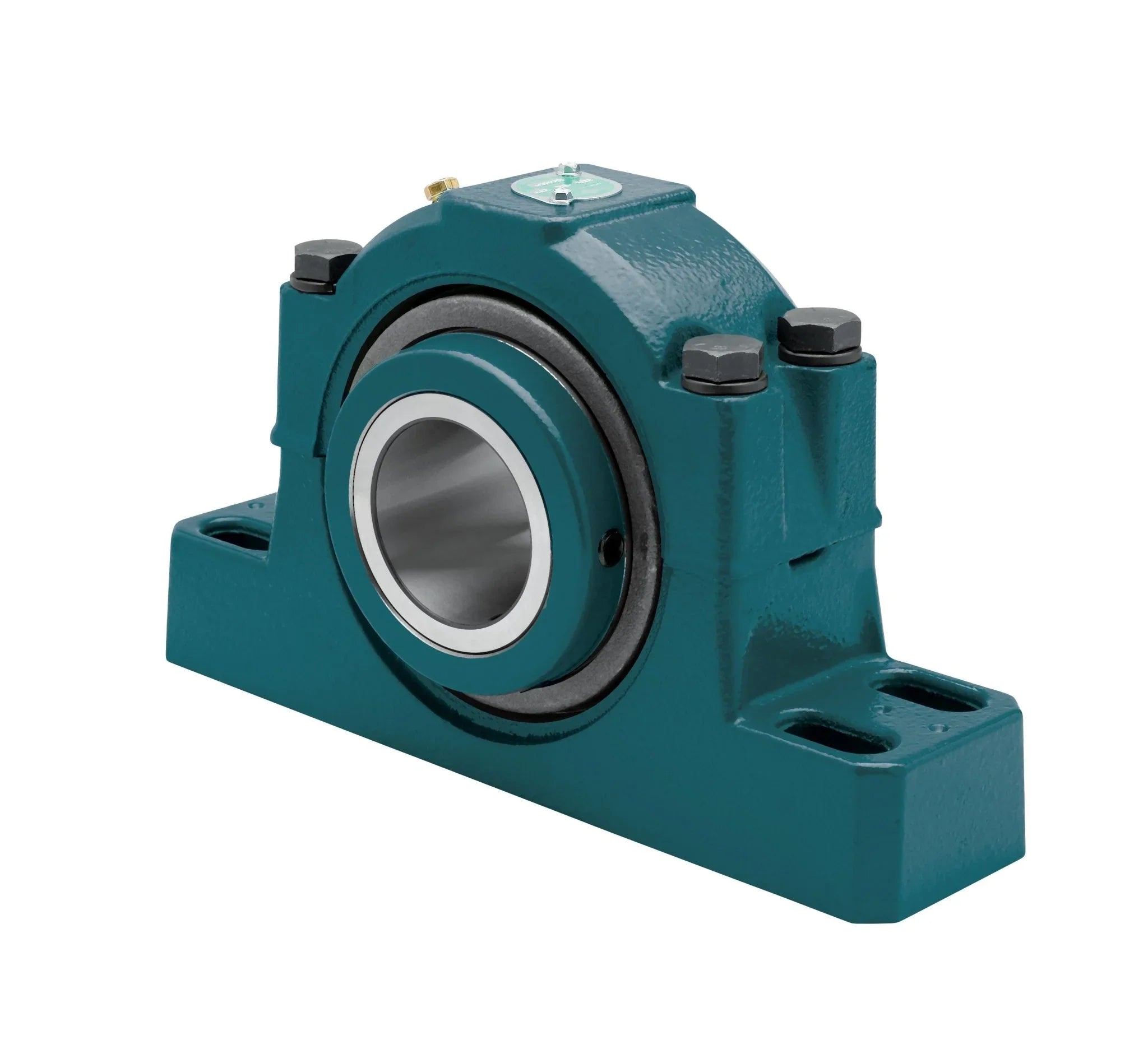

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-DI-600E-HT
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 7.125 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1 in |
| Bolt to Bolt (Max) | 2.625 in |
| Bolt to Bolt (Min) | 19 in |
| Bolt Width | 3 in |
| Bore Length | 9 in |
| Dynamic Load Capacity | 40700 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease HTS #2 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 915 RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 6 in |
| Static Load Capacity | 354000 lbf |
| Suitable for High Temperature | Yes |
