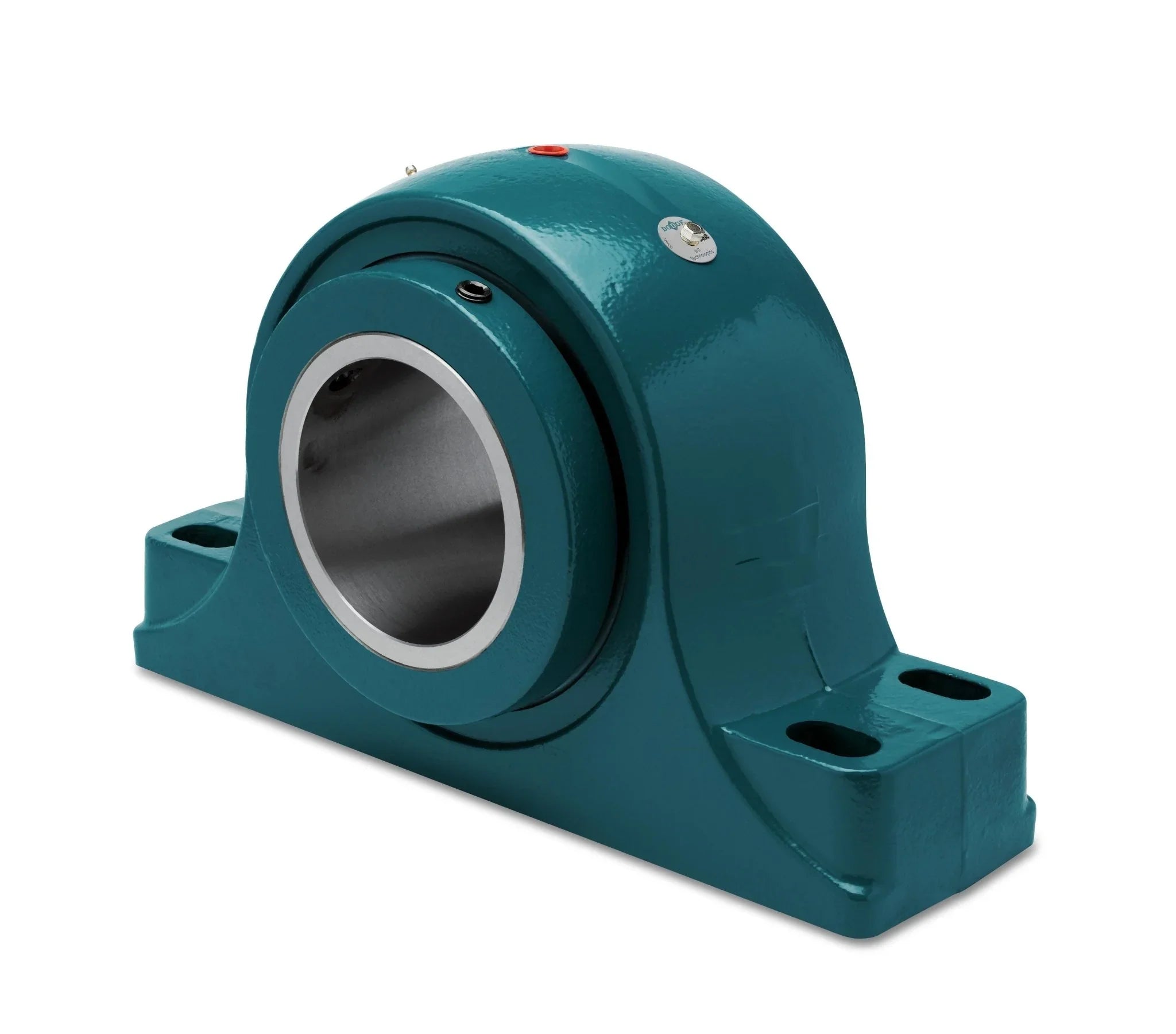

057262 - Dodge - P4B-E-070MR TYPE E-XTRA
Regular price
$1,000.89 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-E-070MR
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 79.502 mm |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 15.875 mm |
| Bolt to Bolt (Max) | 249.174 mm |
| Bolt to Bolt (Min) | 233.426 mm |
| Bolt Width | 54.102 mm |
| Bore Length | 114.3 mm |
| Dynamic Load Capacity | 49464 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2060 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Yes |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 70 mm |
| Static Load Capacity | 272231 lbf |
