052801 - Dodge - F4B-E-035MR
Regular price
$285.12 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

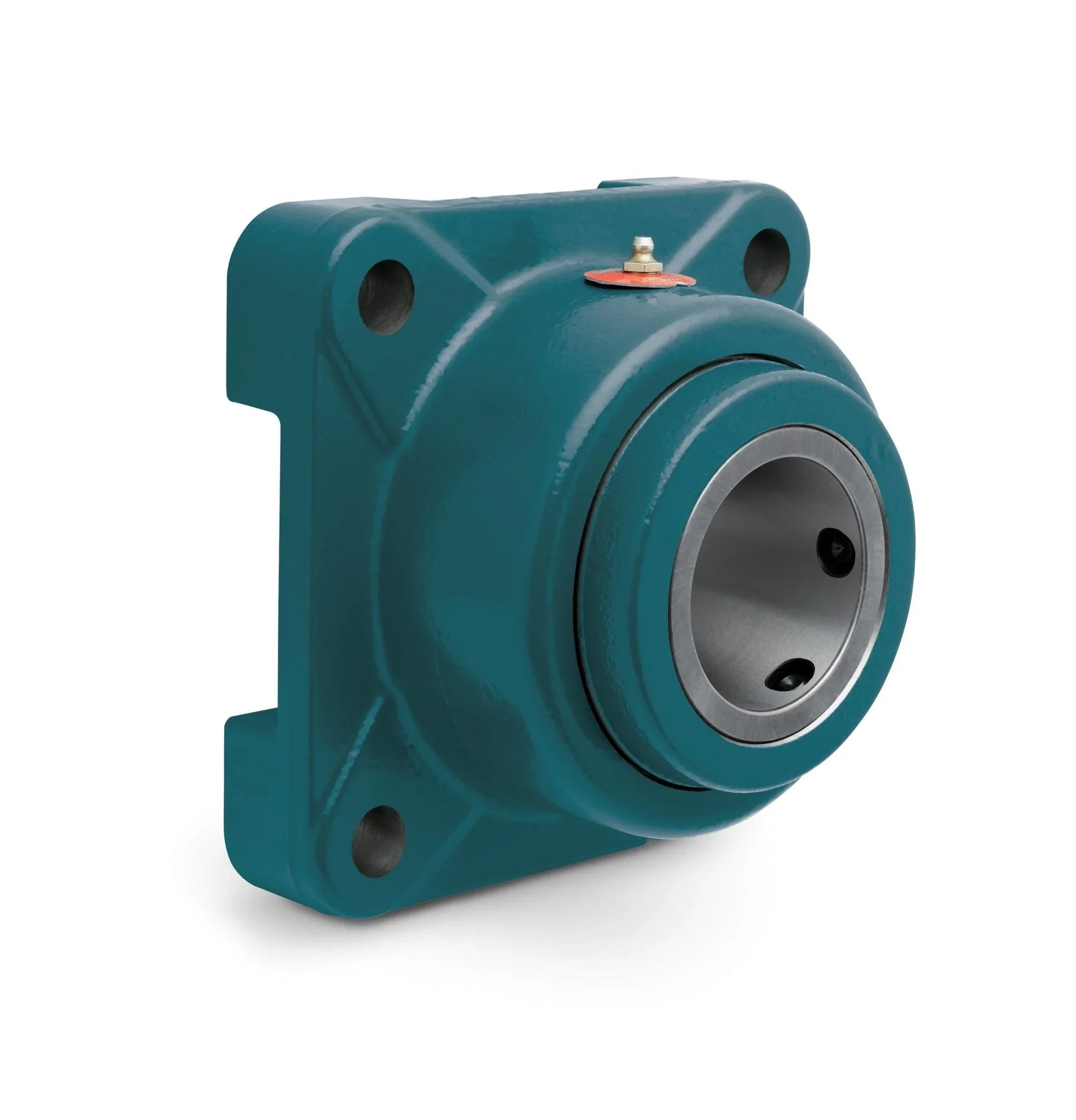

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
052801 - Dodge - F4B-E-035MR
F4B-E-035MR
Technical Specifications
| Bearing Type | Tapered Roller |
| Bolt Circle | 4.9500 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_e/f4b_hm_asmtab.prj&varset={SS=35},{PN=052801},{DESCRIPTION=F4B-E-035MR},{A=77.8},{B=117.5},{C=65.9},{D=88.9},{E=1.60},{F=M12},{H=27.0},{J=88.9},{L=69.8}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3820 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 26000 |
| Static Load Capacity (Unit) | POUND_FORCE |
