050476 - Dodge - P2B-SCEZ-207-NY
Regular price
$341.01 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

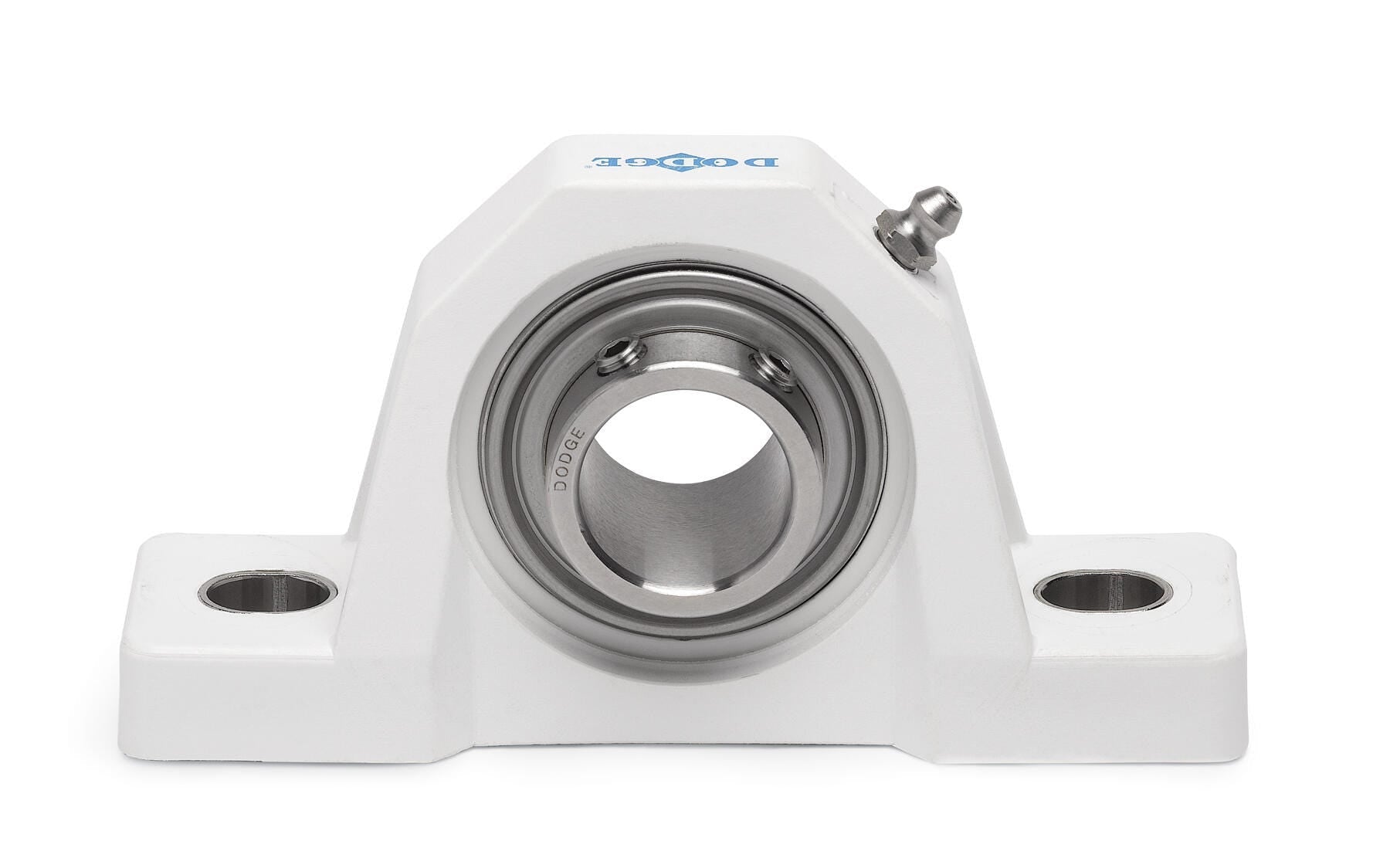

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P2BSCEZ207NY
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 212 Series |
| Base to Center Height | 2.75 in |
| Bearing Type | Ball |
| Bolt Diameter | 0.625 in |
| Bolt to Bolt (Max) | 7.94 in |
| Bolt to Bolt (Min) | 6.88 in |
| Bore Length | 2.75 in |
| Dynamic Load Capacity | 11791 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Set Screw |
| Shaft Diameter | 2.4375 in |
| Static Load Capacity | 8100 lbf |
| Suitable For Washdown | Yes |
| Take-Up Frame Size | LD-40,TS-300 |
