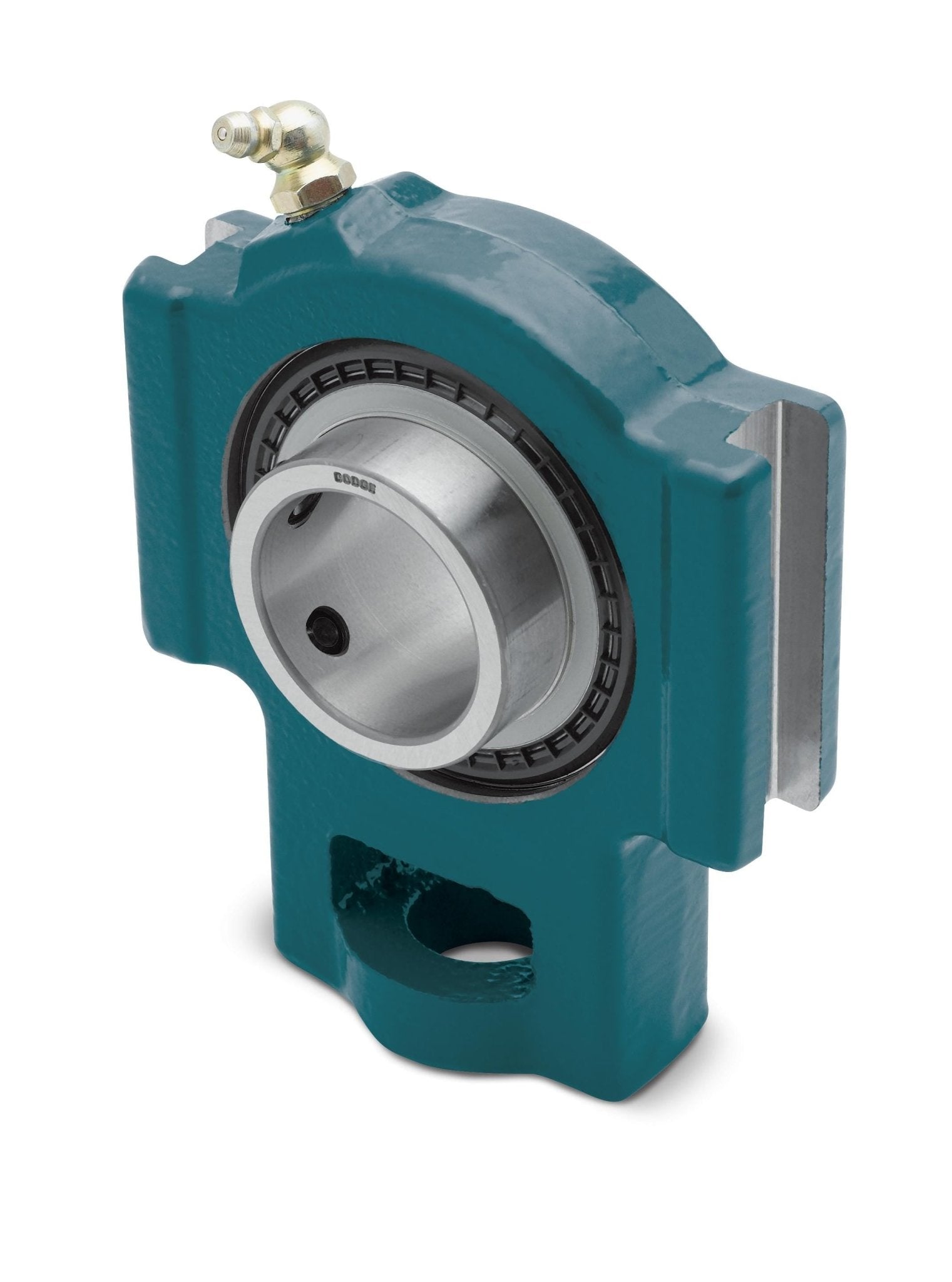

049891 - Dodge - WSTU-SCM-115-HT
WSTU-SCM-115-HT
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bore Length | 2.2200 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Krytox GPL 206 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-502 |
