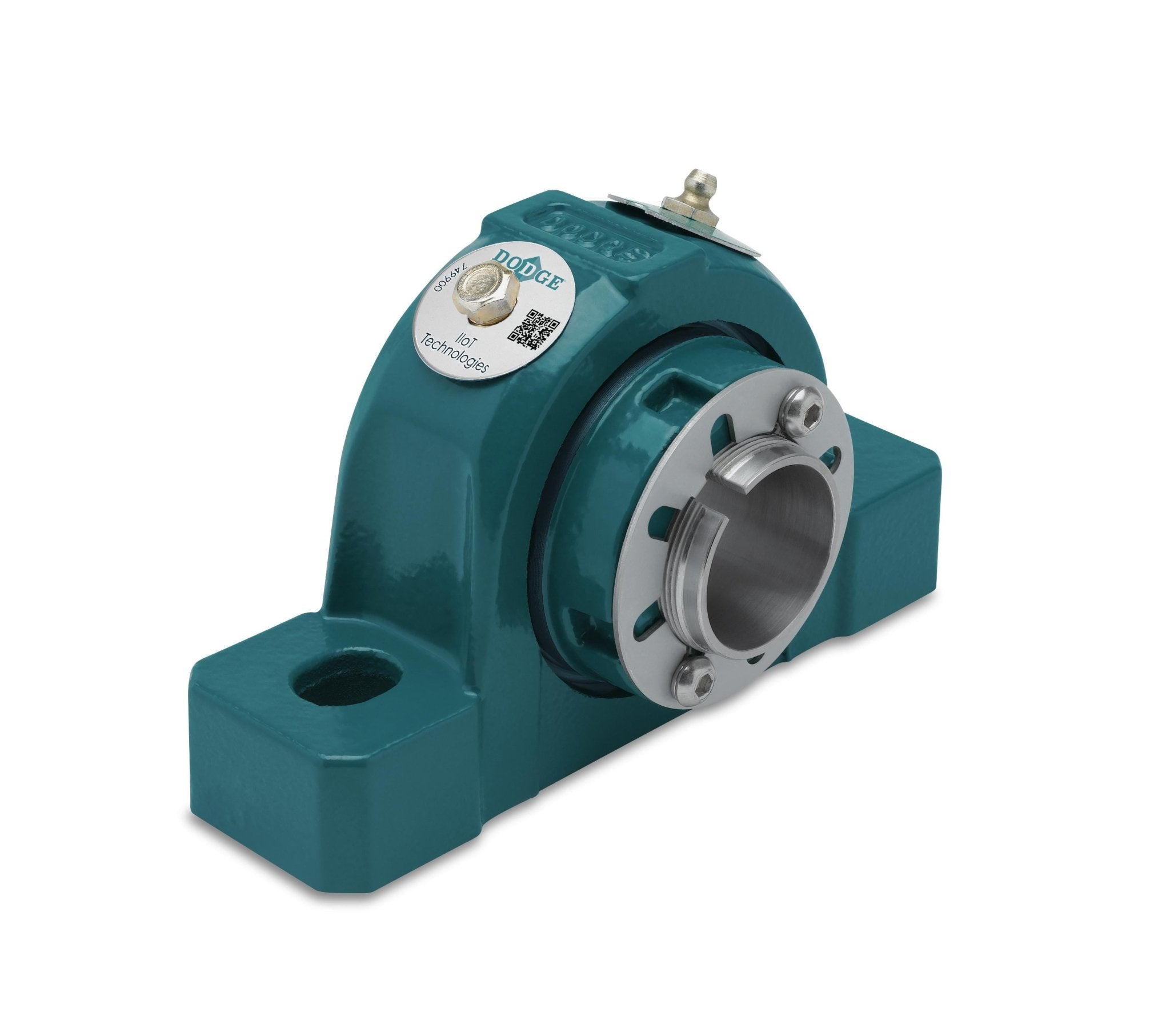

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
049485 - Dodge - P2B-IP-090ML
P2B-IP-090ML
Technical Specifications
| Base to Center Height | 4.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 12.8750 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 12.8750 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.7031 |
| Bore Length (Unit) | INCH |
| Dynamic Load Capacity | 83000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 90.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 104000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350,TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
