039394 - Dodge - CP4B322-USAF-110MTT USAF
Regular price
$3,027.68 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

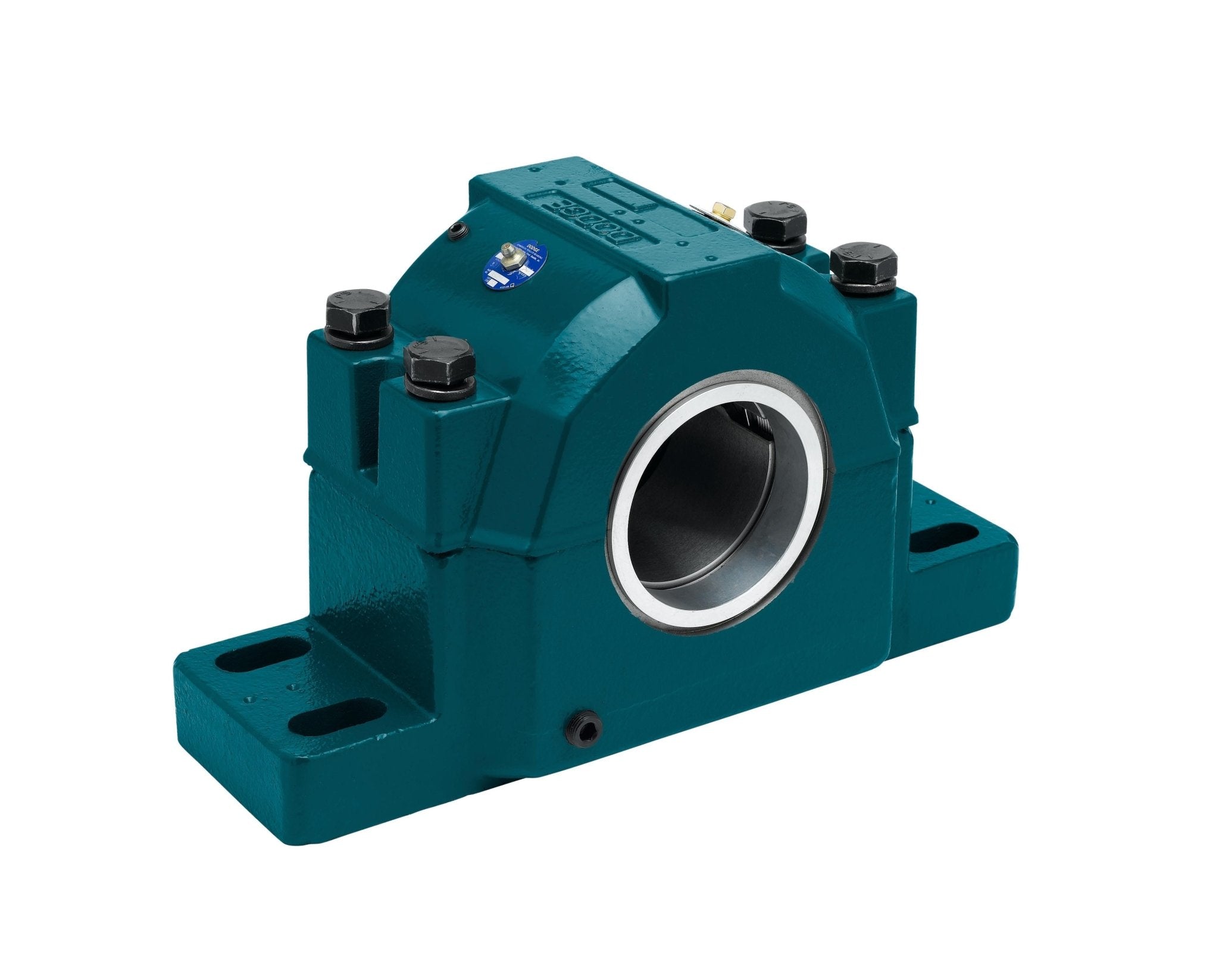

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
039394 CP4B322-USAF-110MTT USAF
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 6 in |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.875 in |
| Bolt to Bolt (Max) | 16 in |
| Bolt to Bolt (Min) | 14.5 in |
| Bolt Width | 3.25 in |
| Bore Length | 8.09 in |
| Dynamic Load Capacity | 212000 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Expansion Field Convertible | Yes |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Dimensional Standard | SAF |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1500 RPM |
| Seal Type | Combination Contact Labyrinth Seal |
| Sensor Ready | Yes |
| Shaft Attachment | Direct Mount |
| Shaft Diameter | 110 mm |
| Static Load Capacity | 240000 lbf |
