023258 - Dodge - WSTU-K-110R TYPE K
Regular price
$692.47 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

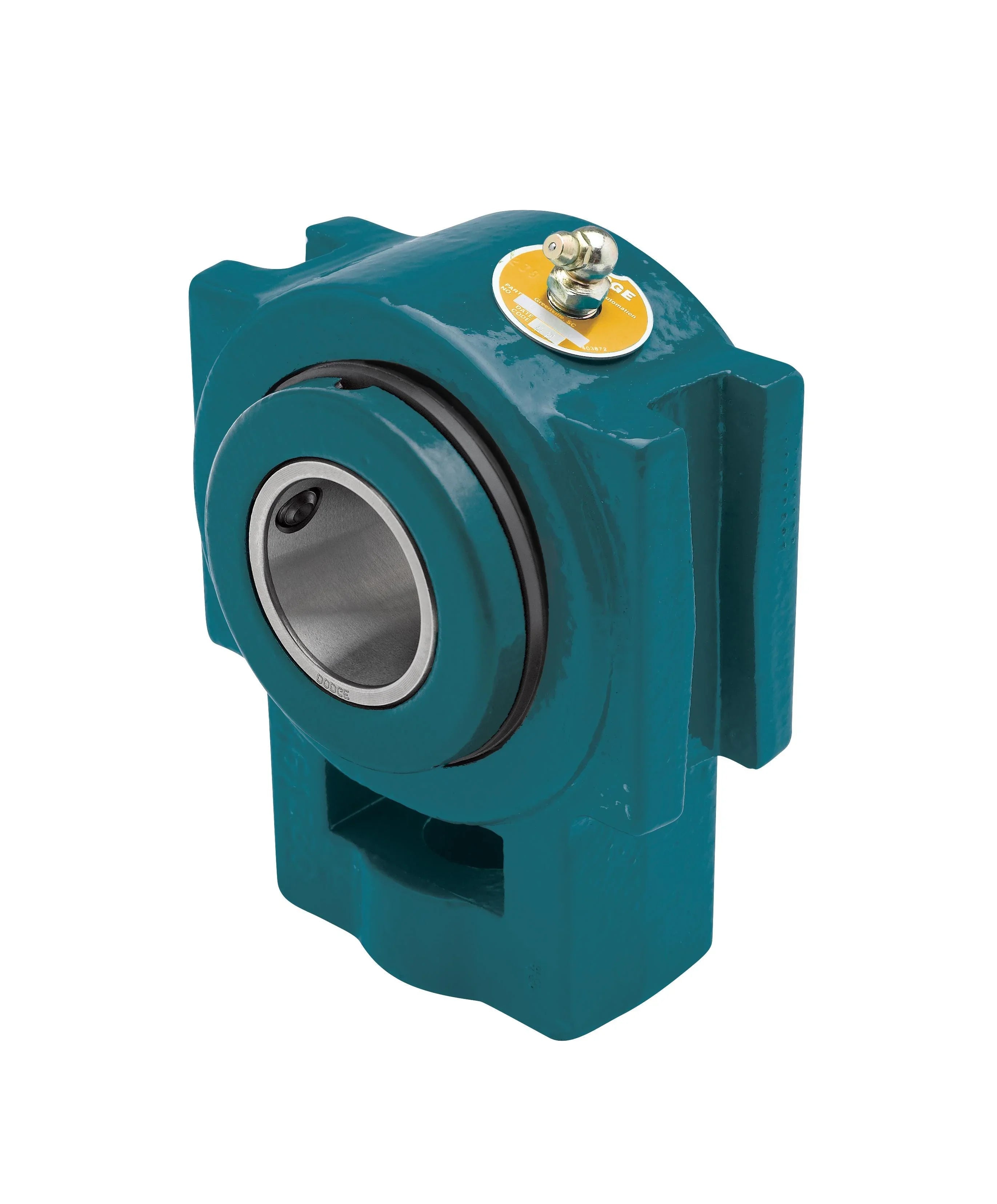

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
023258 - Dodge - WSTU-K-110R TYPE K
WSTU-K-110R TYPE K
Technical Specifications
| Bearing Type | Tapered Roller |
| Bore Length | 2.8300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_k/wstu_k_asmtab.prj&varset={SS=1-5/8},{PN=023258},{PNA=WSTU-K-110R},{WEIGHT=8},{A=2-27/32},{B=6},{C=11/16},{D=3-1/4},{E=3-13/16},{F=1},{G=15/16},{H=3/4},{J=3-5/16},{K=1-15/16},{L=3-3/16},{M=4},{N=4-3/4},{R=1-5/32},{S=1-11/16},{T=2-5/16},{CS=33000},{CD=6140},{RN=18},{RM=.35},{PDI=2.411},{EP=.004-.012},{SC=5/16-18*5/8},{TC=165},{MH=C.I. ASTM A48 CLASS 30},{MC=4118 CASE CARB.},{MCU=4118 CASE CARB.},{MR=STEEL},{MRO=4118 CASE CARB.},{SM=�.001%22 PER INCH}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7070 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3320 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.6250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 33000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | CP-308 |
