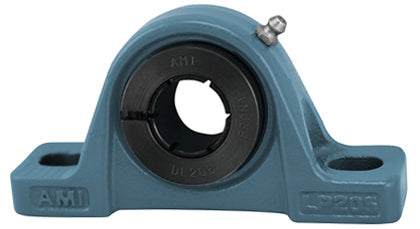

AMI UELP206 - 30mm Wide Accu-Loc Low Base Pillow Block Ball Bearing Unit
Regular price
$63.35 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI UELP206 is a 30 mm bore accu-loc® low base pillow block mounted ball bearing unit with a cast iron housing and an insert of AISI 52100 Steel. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UELP206 |
| UPC | 808250125968 |
| Brand | AMI |
| Product Category | Pillow Blocks |
| Product Family | UELP200 |
| Housing Type | Low Base Pillow Block |
| Shaft Diameter (Bore) | 30 mm |
| Insert / Bearing Number | UE206 |
| Housing Number | LP206T |
| Housing Material | Cast Iron |
| Insert Material | AISI 52100 Steel |
| Locking Style | Accu-Loc® |
| Duty Series | Normal |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bolt Size | M12 |
| Weight | 2.86 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

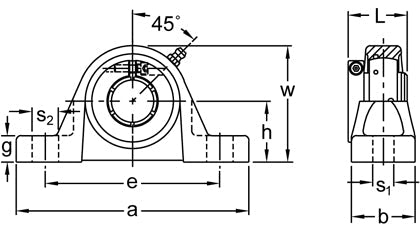

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 165 |
| b | 41 |
| e-Max | 133 |
| e-Min | 114 |
| g | 17 |
| h | 39.7 |
| L | 39.8 |
| s1 | 15 |
| s2 | 22 |
| w | 81 |
