AMI UCHPL206-19MZ20W - 1-3/16" Kanigen Set Screw White Hanger Bearing Ball Bearing Unit
Regular price
$144.43 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

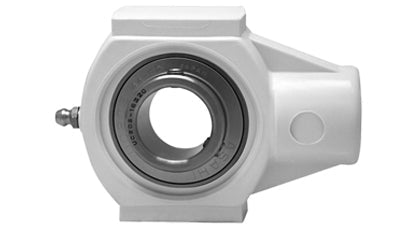

The AMI UCHPL206-19MZ20W is a 1-3/16" bore set screw hanger mounted ball bearing unit with a pbt thermoplastic housing and an insert of AISI 52100 Steel - Kanigen Protection. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UCHPL206-19MZ20W |
| UPC | 808250402687 |
| Brand | AMI |
| Product Category | Hanger Units |
| Product Family | UCHPL200MZ20 |
| Housing Type | Hanger |
| Shaft Diameter (Bore) | 1-3/16" |
| Insert / Bearing Number | UC206-19MZ20 |
| Housing Number | HPL206 |
| Housing Material | PBT Thermoplastic |
| Housing Color | White |
| Insert Material | AISI 52100 Steel - Kanigen Protection |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/4-28 UNF |
| Weight | 1.34 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

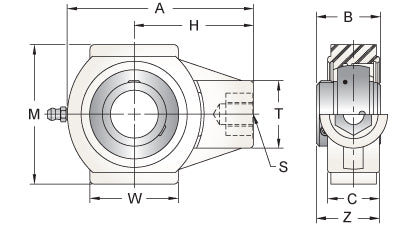

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| A | 4-59/64 |
| B | 1.500 |
| C | 1-23/64 |
| H | 3 |
| M | 3-1/2 |
| S | 5/8-11UNC |
| T | 1-37/64 |
| W | 2-1/2 |
| Z | 1-35/64 |
