AMI UCFCS208 - 40mm Wide Set Screw Piloted Flange Cartridge Ball Bearing Unit
Regular price
$82.08 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

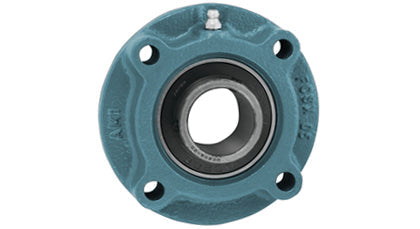

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI UCFCS208 is a 40 mm bore set screw piloted flange cartridge mounted ball bearing unit with a cast iron housing and an insert of AISI 52100 Steel. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UCFCS208 |
| UPC | 808250143801 |
| Brand | AMI |
| Product Category | Piloted Flange Units |
| Product Family | UCFCS200 |
| Housing Type | Piloted Flange Cartridge |
| Shaft Diameter (Bore) | 40 mm |
| Insert / Bearing Number | UC208 |
| Housing Number | FCSX07 |
| Housing Material | Cast Iron |
| Insert Material | AISI 52100 Steel |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bolt Size | M10 |
| Weight | 3.71 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

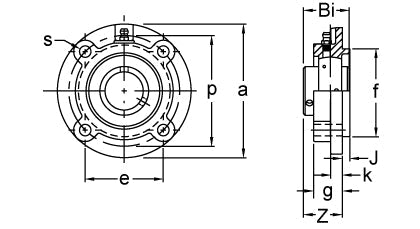

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 133 |
| Bi | 49.2 |
| e | 78.5 |
| f | 92.1 |
| g | 26 |
| J | 11 |
| K | 11 |
| p | 111 |
| s | 12 |
| Z | 39.2 |
