AMI UCF205NPMZ2 - 25mm Zinc Wide Set Screw Nickel 4-Bolt Flange Ball Bearing Unit
Regular price
$53.33 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

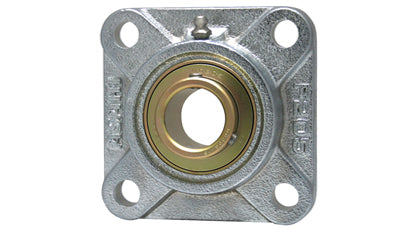

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI UCF205NPMZ2 is a 25 mm bore set screw four-bolt flange mounted ball bearing unit with a cast iron - nickel protection housing and an insert of AISI 52100 Steel - Zinc Protection. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UCF205NPMZ2 |
| UPC | 808250118755 |
| Brand | AMI |
| Product Category | Four-Bolt Flange Units |
| Product Family | UCF200NPMZ2 |
| Housing Type | Four-Bolt Flange |
| Shaft Diameter (Bore) | 25 mm |
| Insert / Bearing Number | UC205MZ2 |
| Housing Number | F205NP |
| Housing Material | Cast Iron - Nickel Protection |
| Insert Material | AISI 52100 Steel - Zinc Protection |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/4-28 UNF |
| Bolt Size | M10 |
| Weight | 1.72 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

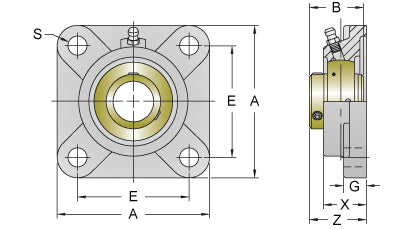

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| A | 95 |
| B | 34 |
| E | 70 |
| G | 14 |
| S | 12 |
| X | 27 |
| Z | 35.7 |
