AMI UC320 - 100mm Heavy Duty Wide Set Screw Bearing Insert Ball Bearing Unit
Regular price
$888.59 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI UC320 is a 100 mm bore set screw bearing inserts mounted ball bearing unit with an insert of AISI 52100 Steel. It is heavy duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UC320 |
| UPC | 808250276615 |
| Brand | AMI |
| Product Category | Bearing Inserts |
| Product Family | UC300 |
| Shaft Diameter (Bore) | 100 mm |
| Dimensional Series | Metric |
| Insert Material | AISI 52100 Steel |
| Locking Style | Set Screw |
| Duty Series | Heavy |
| O.D. Style | Spherical O.D. |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Dynamic Load Rating | 17700 kgf |
| Static Load Rating | 14300 kgf |
| Weight | 24.1 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

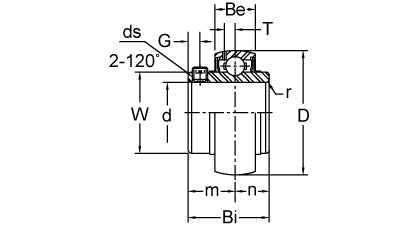

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| Be | 54 |
| Bi | 108 |
| D | 215 |
| ds | M18x1.5 |
| G | 18 |
| m | 66 |
| n | 42 |
| r | 4 |
| T | 18 |
| W | 135.5 |
