AMI UC209-28MZ20 - 1-3/4" Kanigen Normal Wide Set Screw Bearing Insert Ball Bearing Unit
Regular price
$165.20 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI UC209-28MZ20 is a 1-3/4" bore set screw bearing inserts mounted ball bearing unit with an insert of AISI 52100 Steel - Kanigen Protection. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | UC209-28MZ20 |
| UPC | 808250378135 |
| Brand | AMI |
| Product Category | Bearing Inserts |
| Product Family | UC200MZ20 |
| Shaft Diameter (Bore) | 1-3/4" |
| Dimensional Series | Inch |
| Insert Material | AISI 52100 Steel - Kanigen Protection |
| Locking Style | Set Screw |
| Duty Series | Normal |
| O.D. Style | Spherical O.D. |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Dynamic Load Rating | 7420 lbf |
| Static Load Rating | 4610 lbf |
| Weight | 1.54 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

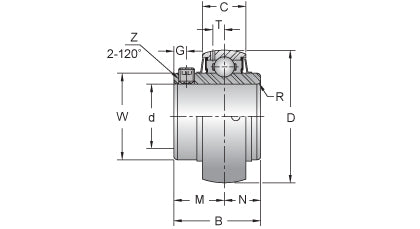

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| B | 1.937 |
| C | 0.866 |
| D | 3.3465 |
| G | 0.315 |
| M | 1.189 |
| N | 0.748 |
| R | 0.079 |
| T | 0.256 |
| W | 2.256 |
| Z | 5/16-24 |
