AMI MUFL005C - 25mm Stainless X-Narr Ecc Coll Stainless 2-Bolt Flg Opn Cov Ball Bearing Unit
Regular price
$91.71 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

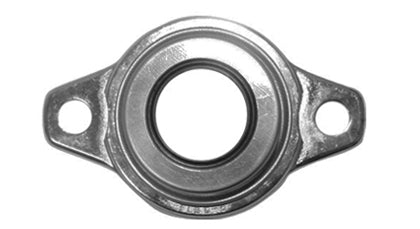

The AMI MUFL005C is a 25 mm bore eccentric collar two-bolt flange mounted ball bearing unit with a zdc alloy with electroless chromate finish housing and an insert of 440C Stainless Steel. It is light duty series and lubricated for life.
| Specifications | |
|---|---|
| Manufacturer Part Number | MUFL005C |
| UPC | 808250157129 |
| Brand | AMI |
| Product Category | Two-Bolt Flange Units |
| Product Family | MUFL000C |
| Housing Type | Two-Bolt Flange |
| Shaft Diameter (Bore) | 25 mm |
| Insert / Bearing Number | MU005 |
| Housing Number | FL05-6Z3 |
| Housing Material | ZDC Alloy with Electroless Chromate Finish |
| Insert Material | 440C Stainless Steel |
| Locking Style | Eccentric Collar |
| Duty Series | Light |
| Cover Type | Open cover |
| Cover Material | Stainless Pressed Steel |
| Inner Ring Width | Extra Narrow |
| Relubricatable | No |
| Bolt Size | M8 |
| Weight | 0.61 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

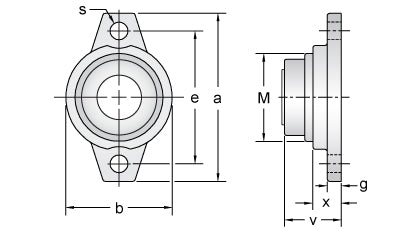

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 95 |
| b | 60 |
| e | 75 |
| g | 8 |
| M | 50 |
| s | 10 |
| v | 32 |
| x | 16 |
