AMI MUCT207-20 - 1-1/4" Stainless Set Screw Stainless Take-Up Ball Bearing Unit
Regular price
$297.49 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

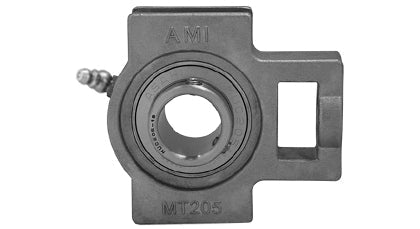

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI MUCT207-20 is a 1-1/4" bore set screw take-up mounted ball bearing unit with a 304 cast stainless steel housing and an insert of 440C Stainless Steel. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | MUCT207-20 |
| UPC | 808250283941 |
| Brand | AMI |
| Product Category | Take-Up Units |
| Product Family | MUCT200 |
| Housing Type | Take-Up |
| Shaft Diameter (Bore) | 1-1/4" |
| Insert / Bearing Number | MUC207-20 |
| Housing Number | MT207 |
| Housing Material | 304 Cast Stainless Steel |
| Insert Material | 440C Stainless Steel |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Weight | 3.64 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

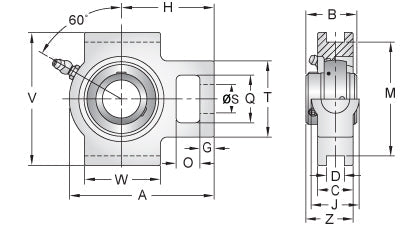

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| A | 5-5/64 |
| B | 1.689 |
| C | 1-3/16 |
| D | 0.472 |
| G | 1/2 |
| H | 3-5/64 |
| J | 1-29/64 |
| M | 3-1/2 |
| O | 5/8 |
| Q | 1-29/64 |
| S | 7/8 |
| T | 2-1/2 |
| V | 4-1/64 |
| W | 2-1/2 |
| Z | 1-19/32 |
