AMI MU002 - 15mm Stainless Light Extra Narrow Ecc Coll Brg Insert Ball Bearing Unit
Regular price
$54.23 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI MU002 is a 15 mm bore eccentric collar bearing inserts mounted ball bearing unit with an insert of 440C Stainless Steel. It is light duty series and lubricated for life.
| Specifications | |
|---|---|
| Manufacturer Part Number | MU002 |
| UPC | 808250121281 |
| Brand | AMI |
| Product Category | Bearing Inserts |
| Product Family | MU000 |
| Shaft Diameter (Bore) | 15 mm |
| Dimensional Series | Metric |
| Insert Material | 440C Stainless Steel |
| Locking Style | Eccentric Collar |
| Duty Series | Light |
| O.D. Style | Spherical O.D. |
| Inner Ring Width | Extra Narrow |
| Relubricatable | No |
| Dynamic Load Rating | 485 kgf |
| Static Load Rating | 230 kgf |
| Weight | 0.11 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

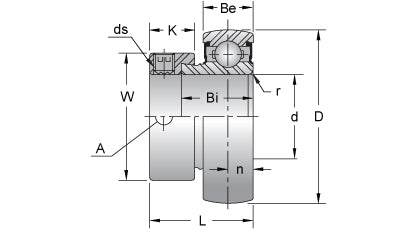

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| A | 3.5 |
| Be | 9 |
| Bi | 12 |
| D | 32 |
| ds | M4x0.7 |
| k | 8.5 |
| L | 18.5 |
| n | 4.5 |
| r | 0.5 |
| W | 22 |
