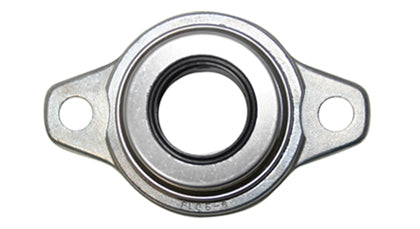

AMI KFL004C - 20mm Extra Narrow Set Screw 2-Bolt Flange Open Cover Ball Bearing Unit
Regular price
$40.49 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The AMI KFL004C is a 20 mm bore set screw two-bolt flange mounted ball bearing unit with a zdc alloy housing and an insert of AISI 52100 Steel. It is light duty series and lubricated for life.
| Specifications | |
|---|---|
| Manufacturer Part Number | KFL004C |
| UPC | 808250280667 |
| Brand | AMI |
| Product Category | Two-Bolt Flange Units |
| Product Family | KFL000C |
| Housing Type | Two-Bolt Flange |
| Shaft Diameter (Bore) | 20 mm |
| Insert / Bearing Number | K004 |
| Housing Number | FL04-5 |
| Housing Material | ZDC Alloy |
| Insert Material | AISI 52100 Steel |
| Locking Style | Set Screw |
| Duty Series | Light |
| Cover Type | Open cover |
| Cover Material | Pressed Steel |
| Inner Ring Width | Extra Narrow |
| Relubricatable | No |
| Bolt Size | M8 |
| Weight | 0.45 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

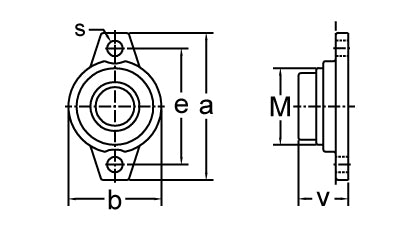

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 90 |
| b | 55 |
| e | 71 |
| g | 8 |
| M | 45 |
| s | 10 |
| v | 31 |
| x | 16 |
