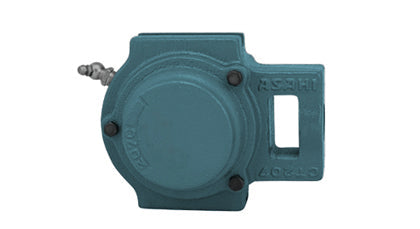

The AMI CUCT210CE is a 50 mm bore set screw take-up mounted ball bearing unit with a cast iron housing and an insert of AISI 52100 Steel. It is normal duty series and relubricatable through the grease fitting.
| Specifications | |
|---|---|
| Manufacturer Part Number | CUCT210CE |
| UPC | 808250231782 |
| Brand | AMI |
| Product Category | Take-Up Units |
| Product Family | CUCT200CE |
| Housing Type | Take-Up |
| Shaft Diameter (Bore) | 50 mm |
| Insert / Bearing Number | UC210 |
| Housing Number | CT210 |
| Housing Material | Cast Iron |
| Insert Material | AISI 52100 Steel |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Cover Type | Closed Cover |
| Cover Material | Cast Iron |
| Inner Ring Width | Wide |
| Relubricatable | Yes |
| Lubrication Fitting Tap | 1/4-28 UNF |
| Weight | 7.44 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

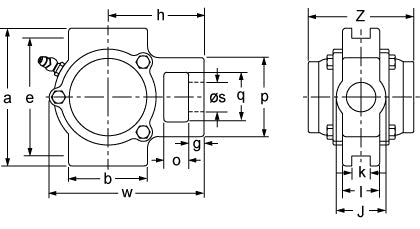

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 117 |
| b | 86 |
| e | 102 |
| g | 16 |
| h | 90 |
| J | 49 |
| k | 16 |
| l | 37 |
| o | 19 |
| p | 83 |
| q | 49 |
| s | 29 |
| w | 151 |
| Z | 98 |
