AMI BRRCSM206-19 - 1-3/16 Narr Set Screw Cyl O.D. Rubber Cartridge Ball Bearing Unit
Regular price
$35.45 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

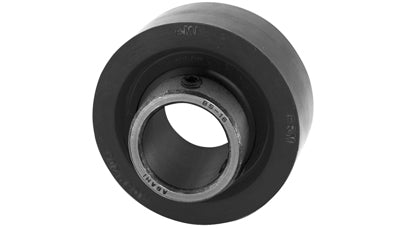

The AMI BRRCSM206-19 is a 1-3/16" bore set screw cartridge mounted ball bearing unit with a rubber housing and an insert of AISI 52100 Steel. It is normal duty series and lubricated for life.
| Specifications | |
|---|---|
| Manufacturer Part Number | BRRCSM206-19 |
| UPC | 808250314782 |
| Brand | AMI |
| Product Category | Cartridge Units |
| Product Family | BRRCSM200 |
| Housing Type | Cartridge |
| Shaft Diameter (Bore) | 1-3/16" |
| Insert / Bearing Number | BR6-19 |
| Housing Number | RCSM206 |
| Housing Material | Rubber |
| Insert Material | AISI 52100 Steel |
| Locking Style | Set Screw |
| Duty Series | Normal |
| Inner Ring Width | Narrow |
| Relubricatable | No |
| Weight | 0.80 lb |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 |
| Country of Origin | Japan (JP) |

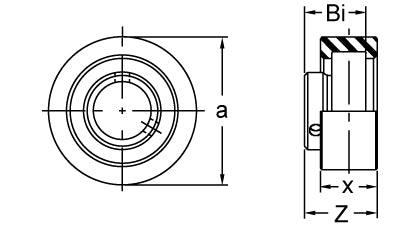

Dimension letters refer to the AMI dimensional drawing shown in the product images.
| Dimensions | |
|---|---|
| a | 2.835 |
| Bi | 1.193 |
| x | 1.102 |
| Z | 1.429 |
