Marathon Electric Explosion Proof Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182TC Frame, EPFC
Regular price
$1,779.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

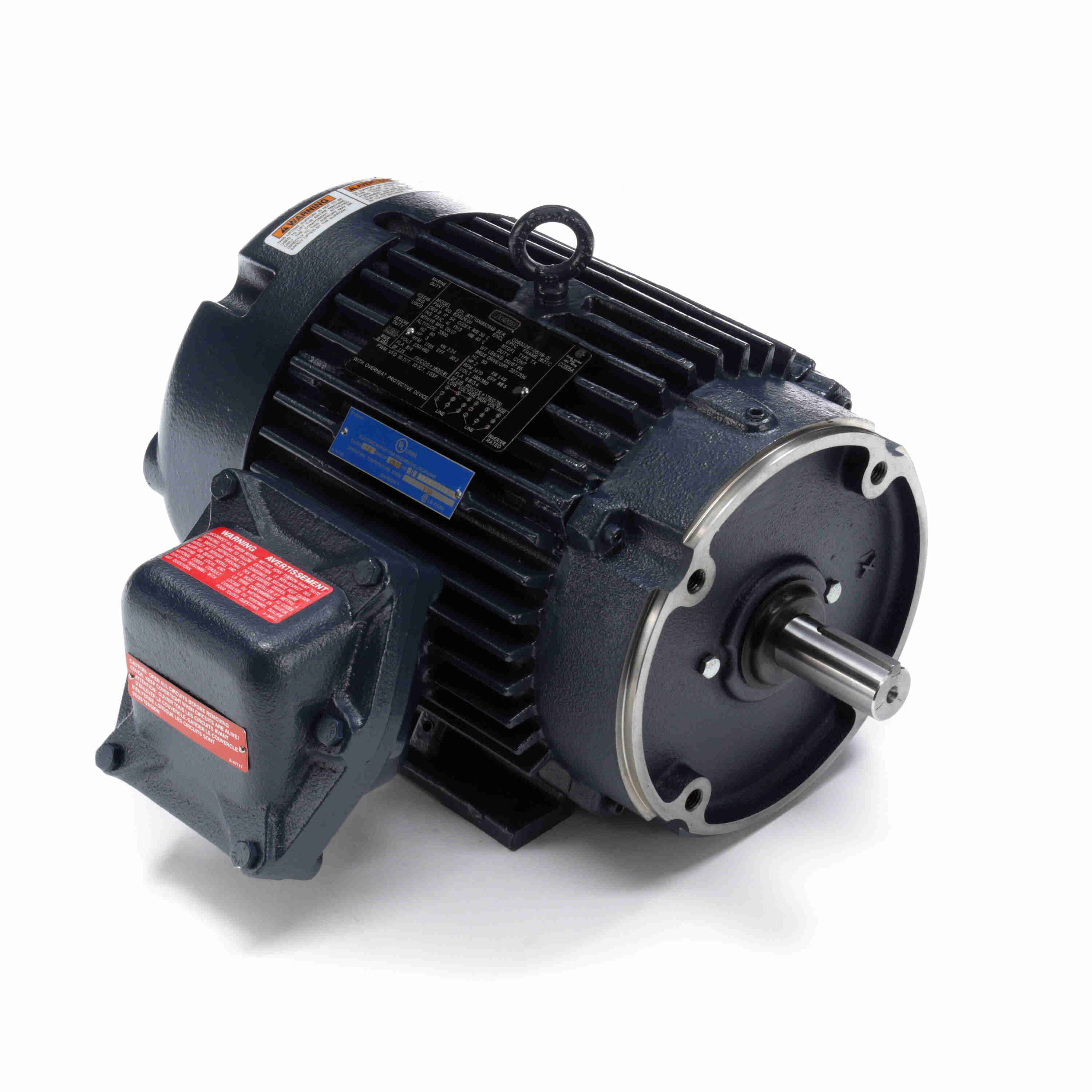

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Explosion Proof Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182TC Frame, EPFC
Features
- Meets UL and CSA safety requirements
- Automatic overload protected
- Explosion rated conduit box included
- Internal mounted capacitors
- Double shielded ball bearings
- Meets temperature code T3B
Specifications
| Performance & Electrical | |
| Power | 3 HP |
| Power (dual rating) | 3 & 2 HP |
| Power | 2.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3525 RPM |
| Speed (dual) | 3525 & 2935 RPM |
| Full-load current | 7.6/3.8 A |
| Current (dual) | 7.6/3.8 & 6.4/3.2 A |
| Nominal efficiency | 87.5% |
| Power factor | 85% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 3.56 Ω |
| Frame & Mechanical | |
| Frame | 182TC |
| Frame size | 182 |
| Frame suffix | TC |
| Frame material | Cast Iron |
| Frame length | 8. in |
| Enclosure | Explosion Proof Fan cooled |
| IP rating | IP54 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.75 in |
| Shaft type | T |
| C dimension | 16.62 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | N |
| UL | UL Listed; also, UL Certified for Canada |
| Hazardous location | DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B |
| Connection drawing | A-EE7308T |
| Outline drawing | 035673-800 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.50 × 16.81 × 14.00 in |
| Weight | 95.00 lb |
| Identification | |
| Manufacturer part / model | 825125.00 |
| Catalog number | C372A |
| UPC | 691720093047 |
| Product line | Hazardous Duty® |
| Country of origin | United States of America |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
