Marathon Electric Severe Duty Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEAO
Regular price
$2,698.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

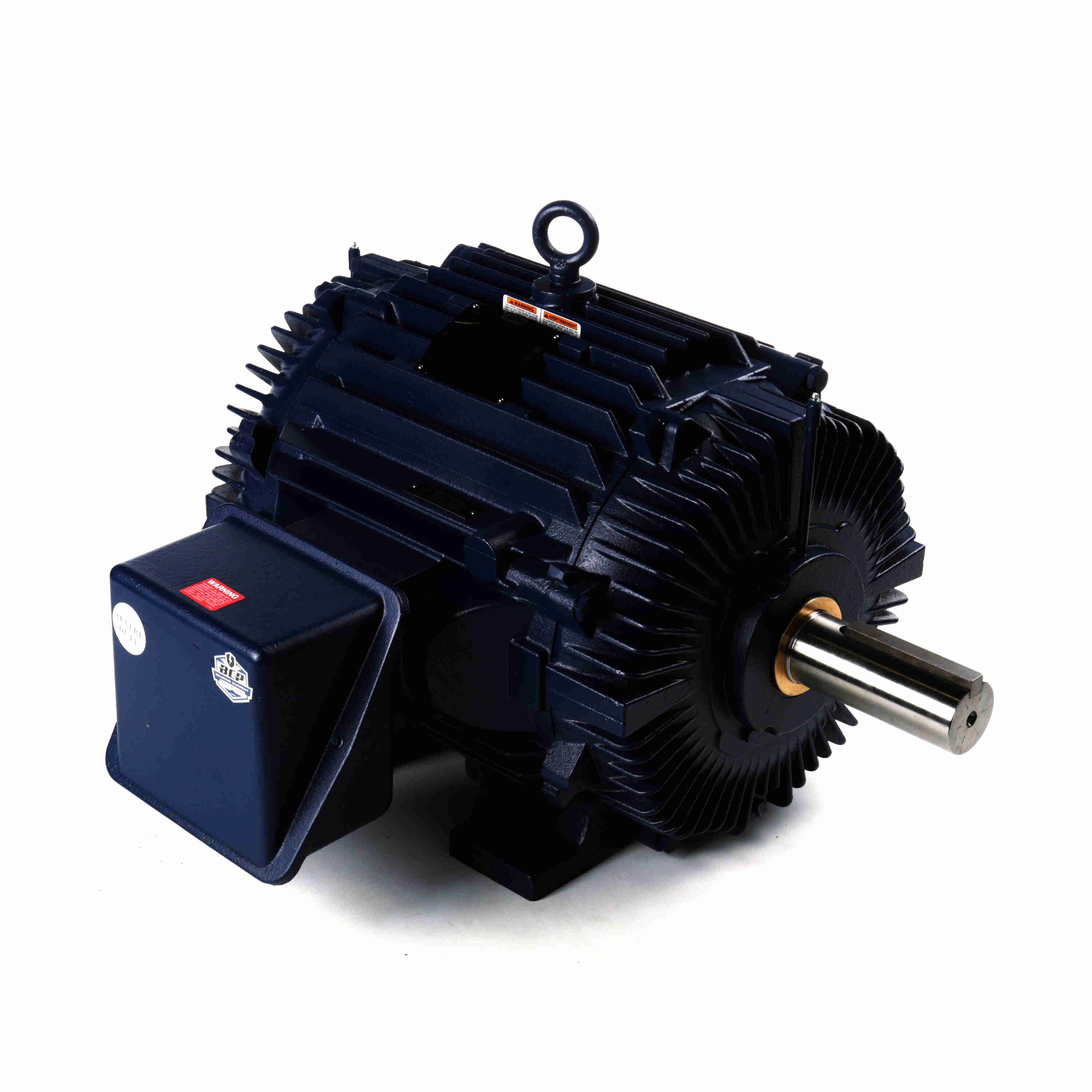

Severe Duty Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 215T Frame, TEAO
Features
- Complete cast iron construction for rigidity and reduced vibration
- Epoxy painted; Severe duty treatment of internal parts
- Class F insulation; Regreasable bearings
- F-1 / F-2 capable; Brass T-drain installed - both ends at 6:00
- Inpro shaft seal protected
- Shaft grounding ring (SGRs) installed
- Inverter rated IRIS® insulation system
- 10:1 constant and variable torque rated
- Designed for shaft up mounting
- 1.15 S.F. under sine wave power
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 & 3 HP |
| Power | 3.7 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1170 RPM |
| Speed (dual) | 1170 & 980 RPM |
| Full-load current | 13.8/6.9 A |
| Current (dual) | 13.8/6.9 & 11/5.5 A |
| Nominal efficiency | 89.5% |
| Power factor | 77% |
| Service factor | 1.5 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | H |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 1.898 Ω |
| Frame & Mechanical | |
| Frame | 215T |
| Frame size | 215 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Frame length | 9.12 in |
| Enclosure | Totally Enclosed Air Over |
| IP rating | IP56 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.38 in |
| Shaft type | T |
| C dimension | 17.47 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6208 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | 037875LE-912 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 19.50 × 19.00 × 15.00 in |
| Weight | 220.00 lb |
| Identification | |
| Manufacturer part / model | 824555.00 |
| Catalog number | 824555.00 |
| UPC | 691720053973 |
| Country of origin | United States of America |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
