469202 - Dodge - 5B5V110-R1 SHEAVE
Regular price
$324.27 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

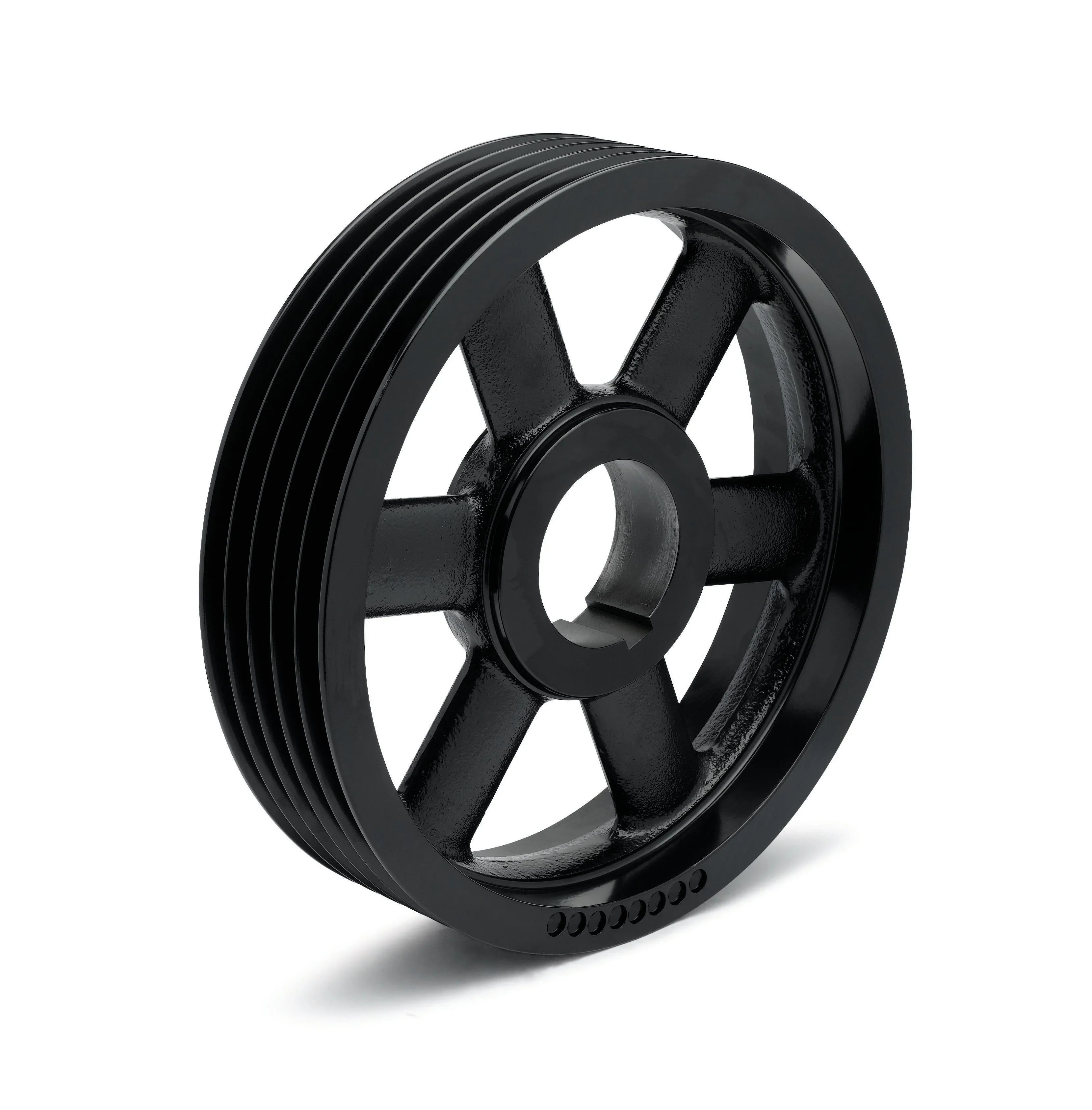

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469202 - Dodge - 5B5V110-R1 SHEAVE
5B5V110-R1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469202},{CR=5B5V110-R1},{OUTS=11.28},{DATUMA=10.60},{DATUMB=11.00},{PITCH=11.10},{H=-0.062500},{TYPE=4W},{B=R1},{WT=34.4},{F=3.87500},{L=2.8750},{E=0.937500} |
| Construction Type | Block |
| Datum Diameter | 11.2800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 5.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 11.2800 |
