Marathon Electric Severe Duty Motor, 600 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 5011LS Frame, TEFC
Regular price
$72,379.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

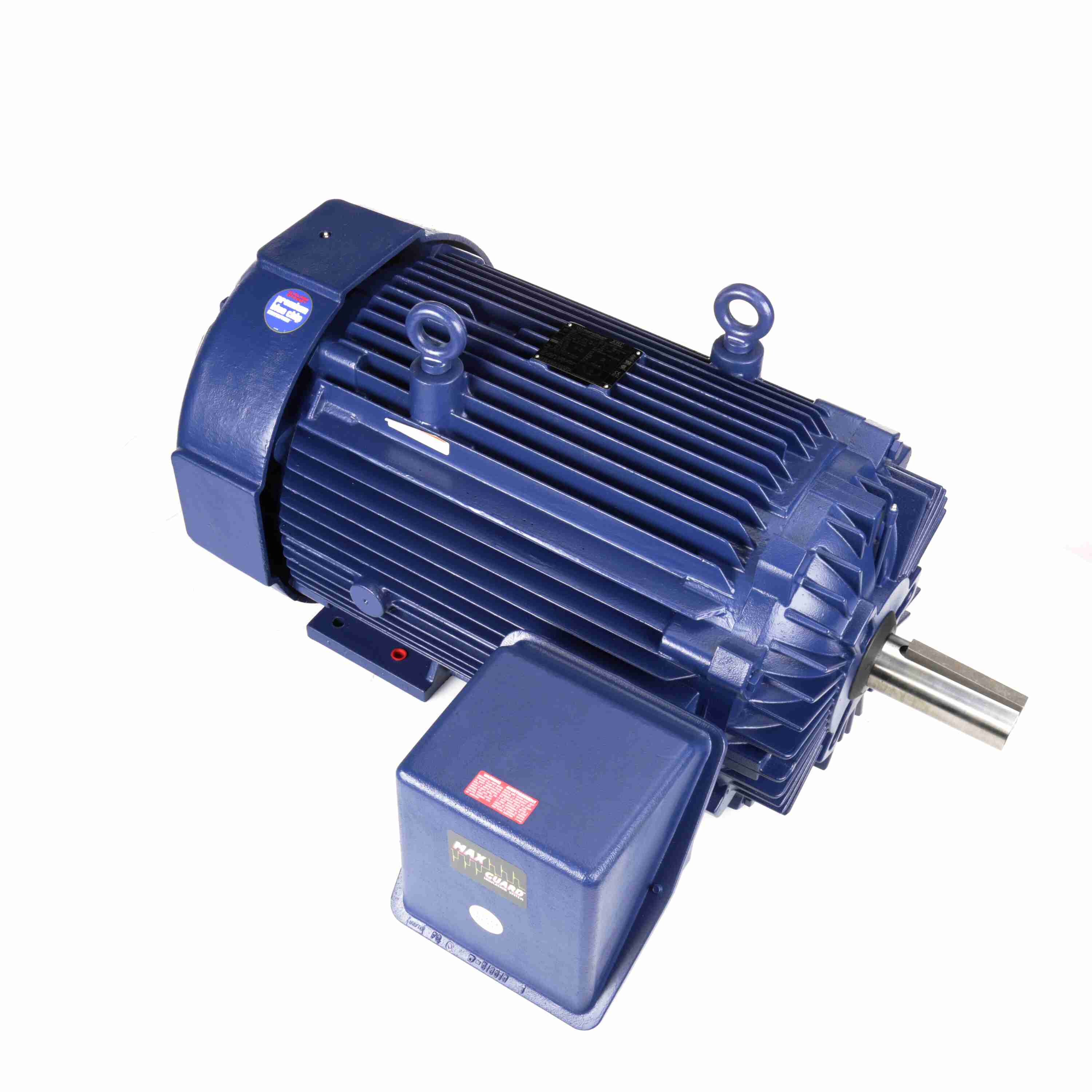

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Severe Duty Motor, 600 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 5011LS Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Frame is drilled with 3 sets of footholes, 5010, 5011, and 5012 as standard. 5009 frame drilling available as build-up
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Provisions to add stub shaft for an encoder (182T-449T, TEFC only)
- Ball bearings on both ends suitable for direct connection. For belted applications, refer to customer service
- MAX GUARD® Class F insulation system, Internal and external epoxy paint
- Constant Torque speed range is listed in CT SPEED RANGE column, NEMA design A
- Not UL recognized
- Bearing caps (254T and larger), Precision balanced to .08”/sec
- Meets IEEE45 USCG Marine Duty, IP54 Construction, Meets Ford EM1 Automotive Duty Specification
Specifications
| Performance & Electrical | |
| Power | 600 HP |
| Power (dual rating) | 600 HP |
| Power | 450.0 kW |
| Voltage | 460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1785 RPM |
| Speed (dual) | 1785 RPM |
| Full-load current | 655.0 A |
| Current (dual) | 655.0 A |
| Nominal efficiency | 96.2% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | .004 Ω |
| Frame & Mechanical | |
| Frame | 5011LS |
| Frame size | 5011 |
| Frame suffix | LS |
| Frame material | Cast Iron |
| Frame length | 49.5 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | H |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 2.625 in |
| Shaft extension | 5.75 in |
| Shaft type | LS |
| C dimension | 67.56 in |
| Drive-end bearing | 6322 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6318 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | No |
| Connection drawing | A-EE7300U |
| Outline drawing | B-SS550798-4950 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 90.00 × 56.00 × 35.32 in |
| Weight | 5,368.00 lb |
| Identification | |
| Manufacturer part / model | 5011LSTFS16033 |
| Catalog number | E366 |
| UPC | 722856020369 |
| Product line | XRI®-SD |
| Country of origin | United States of America |
| HTS / tariff code | 8501.53.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
