Marathon Electric MODEL-IHP, 600HP,2P,ODP,5010S,3/60/2300/4000-4160,CW/DE,120VSH,WRTD-SH,BRTD PROV
Regular price
$71,818.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

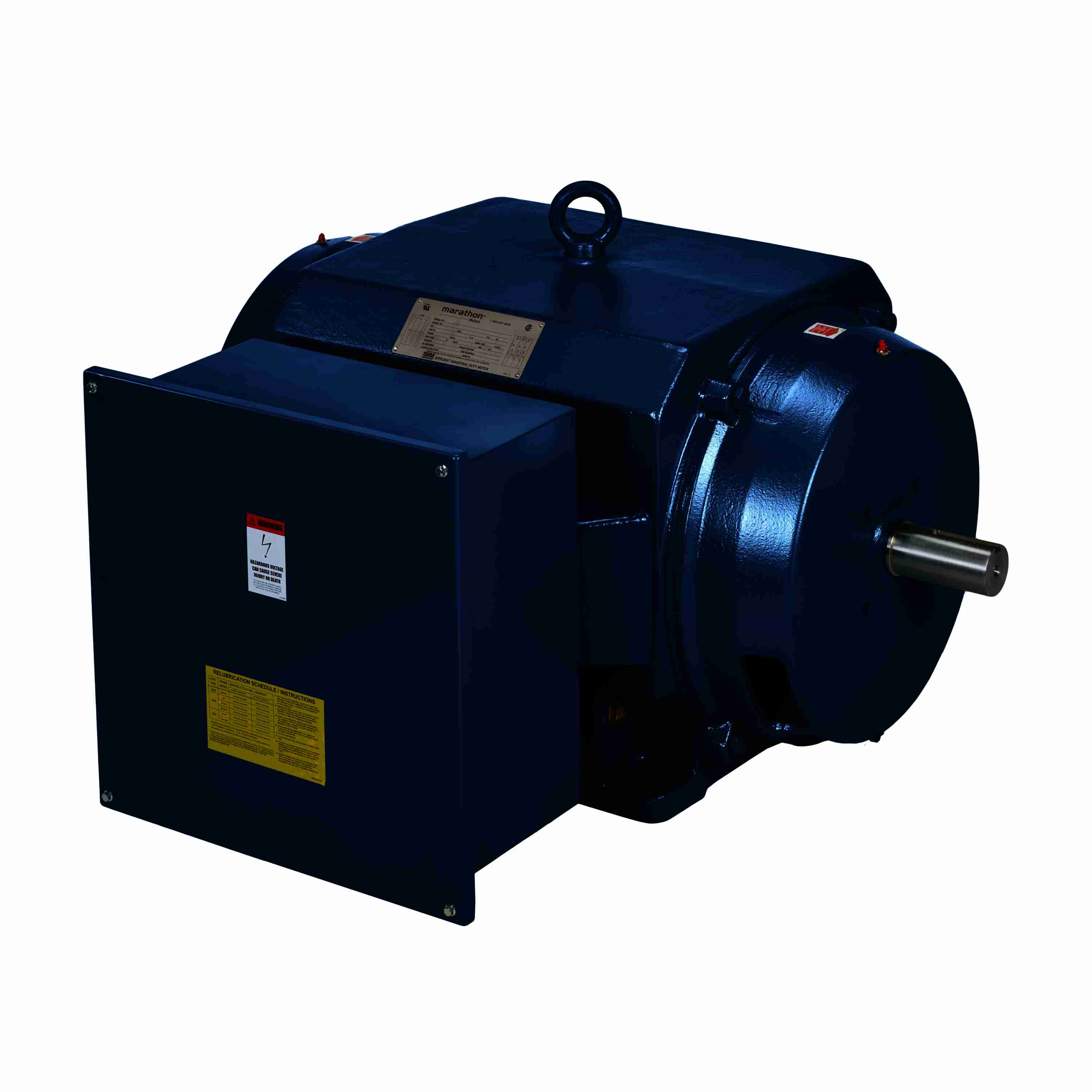

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
MODEL-IHP, 600HP,2P,ODP,5010S,3/60/2300/4000-4160,CW/DE,120VSH,WRTD-SH,BRTD PROV
Features
- Meets or exceeds NEMA Premium efficiencies as mandated, Low Voltage and Medium Voltage Designs Available
- Cast Iron frame and brackets, fabricated steel conduit box, Internal epoxy paint
- Max Guard® Class F, VPI Insulation system, 1.15 Service Factor on Sinewave and 1.0 Service Factor on Inverter Power, Inverter Duty 10:1 Variable, and Suitable for Across-the-Line, Wye-Delta and Part-Winding Starting
- Ball bearing construction
- 120V space heaters - F2 conduit box side
- 100Ω Ohm Platinum shielded winding RTD's (2/phase)
- Provisions for bearing RTD's
- F1 and F2 conduit box side
- UL®* Recognized and CSA®* Certified
Specifications
| Performance & Electrical | |
| Power | 600 HP |
| Power (dual rating) | 600 HP |
| Power | 450.0 kW |
| Voltage | 2300/4000-4160 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3578 RPM |
| Speed (dual) | 3578 RPM |
| Full-load current | 130.0/75.0-71.0 A |
| Current (dual) | 130.0/75.0-71.0 A |
| Nominal efficiency | 95.4% |
| Power factor | 91.5% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Bar Rotator Induction Run |
| Starting method | Across The Line |
| Frame & Mechanical | |
| Frame | 5010S |
| Frame size | 5010 |
| Frame suffix | S |
| Frame material | Cast Iron |
| Enclosure | Drip Proof |
| IP rating | IP23 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Fixed Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 2.875 in |
| Shaft type | S |
| Drive-end bearing | 6316 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6316 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7304AC |
| Outline drawing | MCA8250 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 65.00 × 60.00 × 45.00 in |
| Weight | 3,760.00 lb |
| Identification | |
| Manufacturer part / model | 5010SVDSL16001 |
| Catalog number | Y9112 |
| UPC | 722856217394 |
| Product line | Endurance Series® |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
